A/C Control Module (Manual A/C) Connector End View (M07-A)

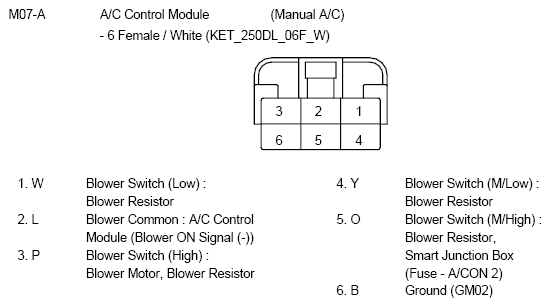

Fig 1: A/C Control Module (Manual A/C) Connector End View (M07-A)
G10793369Courtesy of KIA MOTORS AMERICA, INC.
