MTS Module (With UVO) Connector End View (M25)

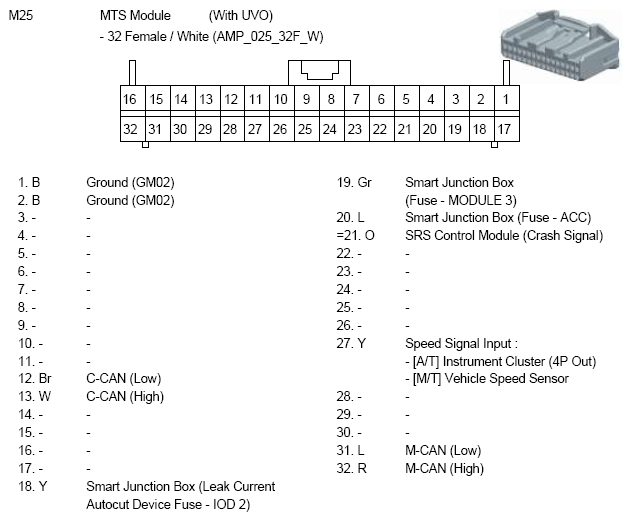

Fig 1: MTS Module (With UVO) Connector End View (M25)
G10793389Courtesy of KIA MOTORS AMERICA, INC.
