SRS Control Module Connector End View (M42)

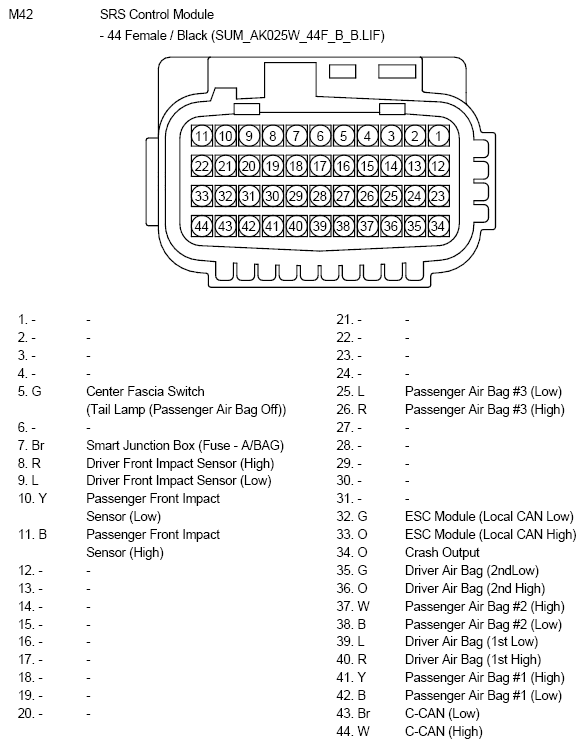

Fig 1: SRS Control Module Connector End View (M42)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
