Start/Stop Button Switch Connector End View (M51)

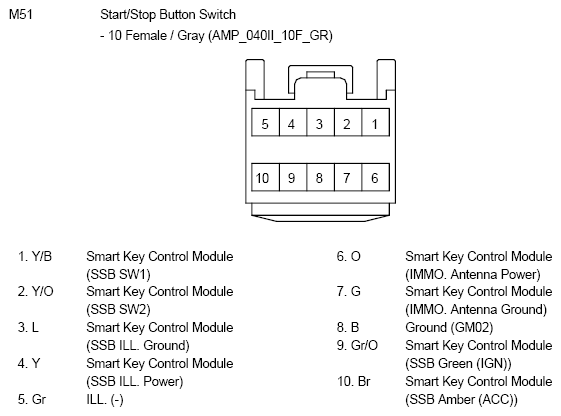

Fig 1: Start/Stop Button Switch Connector End View (M51)
G10793415Courtesy of KIA MOTORS AMERICA, INC.
