Components And Components Location: Components

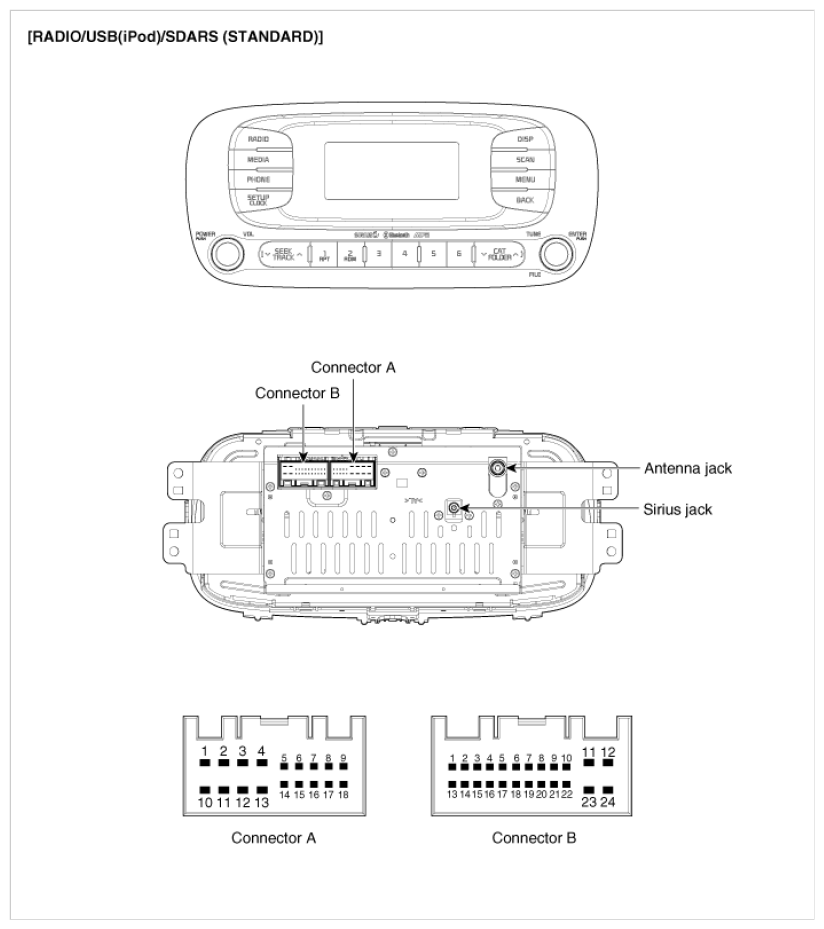

CONNECTOR PIN REFERENCE
| No. | Connector A | Connector B |
|---|---|---|
| 1 | Rear left speaker (+) | - |
| 2 | Front left speaker (+) | - |
| 3 | Front right speaker (+) | - |
| 4 | Rear right speaker (+) | Steering remocon |
| 5 | - | - |
| 6 | - | USB D (+) |
| 7 | - | USB/iPod VDD |
| 8 | Illumination (+) | AUX R input |
| 9 | Detent | AUX ground |
| 10 | Rear left speaker (-) | Mic (+) (Bluetooth) |
| 11 | Front left speaker (-) | ACC |
| 12 | Front right speaker (-) | Battery (+) |
| 13 | Rear right speaker (-) | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | Vehicle speed |
| 17 | Illumination (-) | Remote control ground |
| 18 | Remote antenna | USB D (-) |
| 19 | USB/iPod ground | |
| 20 | AUX detect | |
| 21 | AUX L input | |
| 22 | Mic (-) (Bluetooth) | |
| 23 | - | |
| 24 | Power ground |
Connector Pin Information

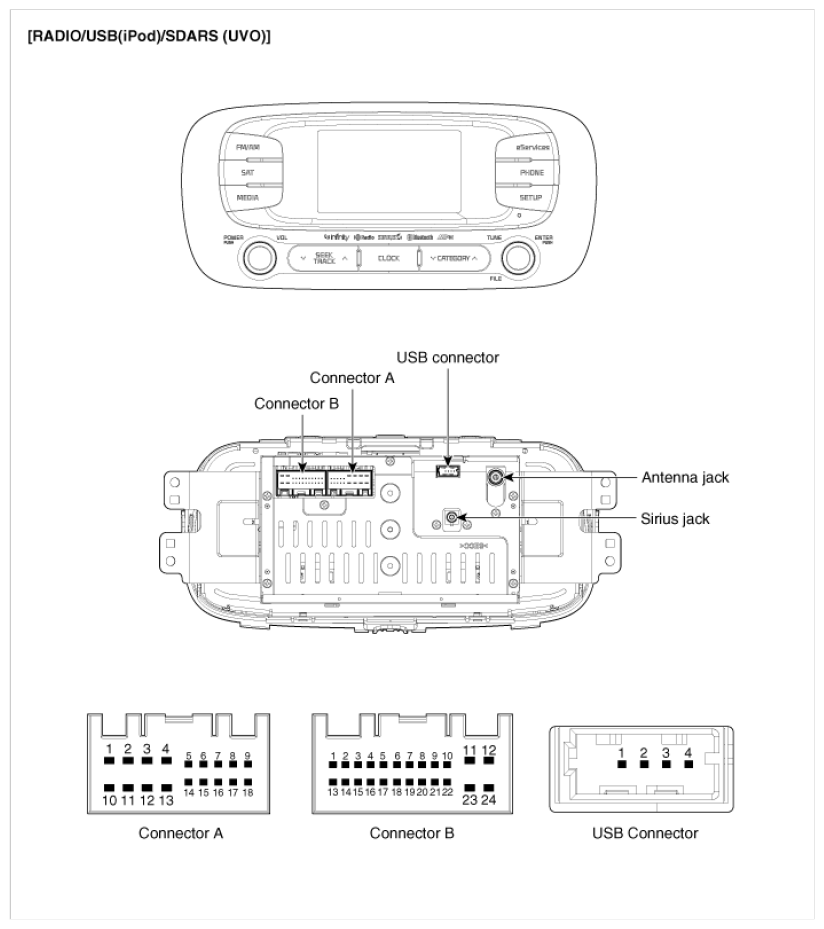

INTERNAL AMPLIFIER SPECIFICATION
| No. | Connector A | Connector B | USB Connector |
|---|---|---|---|
| 1 | Rear left speaker (+) | CAN high | USB/iPod 5V |
| 2 | Front left speaker (+) | - | USB data (-)/iPod Tx |
| 3 | Front right speaker (+) | - | USB data (+)/iPod Rx |
| 4 | Rear right speaker (+) | Steering remote | USB/iPod ground |
| 5 | - | - | |
| 6 | - | Camera video input | |
| 7 | - | Camera battery (+) | |
| 8 | Illumination (+) | AUX R Input | |
| 9 | - | AUX ref. ground | |
| 10 | Rear left speaker (-) | MIC(+) (Bluetooth) | |
| 11 | Front left speaker (-) | ACC | |
| 12 | Front right speaker (-) | B(+) | |
| 13 | Rear right speaker (-) | CAN low | |
| 14 | - | - | |
| 15 | - | Auto light | |
| 16 | Door unlock | Vehicle speed | |
| 17 | Illumination (-) | Remote ground | |
| 18 | Remote antenna | Camera video ground | |
| 19 | Camera req. | ||
| 20 | AUX detect | ||
| 21 | AUX L Input | ||
| 22 | MIC(-) (Bluetooth) | ||
| 23 | Camera power ground | ||
| 24 | Power ground |
EXTERNAL AMPLIFIER SPECIFICATION
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | CAN high | USB/iPod 5V |
| 2 | - | - | USB data (-)/iPod Tx |
| 3 | - | - | USB data (+)/iPod Rx |
| 4 | - | Steering remote | USB/iPod ground |
| 5 | SPDIF ground | - | |
| 6 | SPDIF (-) | Camera video input | |
| 7 | - | Camera battery (+) | |
| 8 | Illumination (+) | AUX R Input | |
| 9 | - | AUX ref. ground | |
| 10 | - | MIC(+) (Bluetooth) | |
| 11 | - | ACC | |
| 12 | - | B(+) | |
| 13 | - | CAN low | |
| 14 | - | - | |
| 15 | SPDIF (+) | Auto light | |
| 16 | Door unlock | Vehicle speed | |
| 17 | Illumination (-) | Remote ground | |
| 18 | Remote antenna | Camera video ground | |
| 19 | Camera req. | ||
| 20 | AUX detect | ||
| 21 | AUX L Input | ||
| 22 | MIC(-) (Bluetooth) | ||
| 23 | Camera power ground | ||
| 24 | Power ground |
