Repair Procedures: Removal

Disconnect the battery negative terminal.

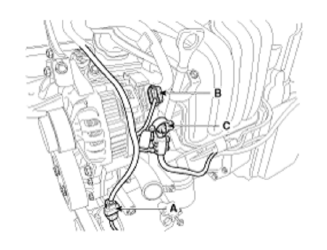

Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable from alternator "B" terminal (C).

Fig 1: Air Compressor, Alternator Connector & B Terminal Connectors
Courtesy of KIA MOTORS AMERICA, INC.

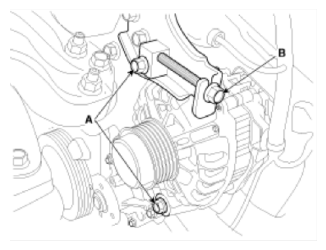

Loosen the mounting bolts (A) and then, turn the adjusting bolt (B) clockwise to loosen tension.

Fig 2: Alternator Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

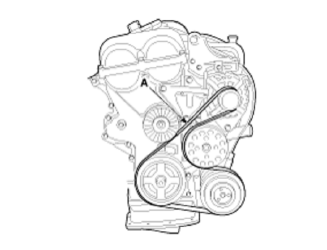

Remove the drive belt (A).

Fig 3: Drive Belt Routing
Courtesy of KIA MOTORS AMERICA, INC.

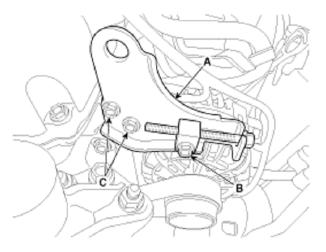

Remove the alternator brace assembly (A) after loosening the mounting upper bolt (B) and brace mounting bolts (C).

Fig 4: Alternator Brace Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

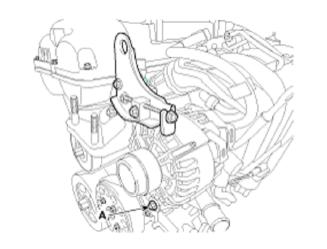

Remove the alternator lower mounting bolt (A), and then remove the alternator.

Fig 5: Alternator Lower Mounting Bolt
