Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to8 "FRONT BUMPER COVER ")

  3. Remove the horn (B) after disconnecting the connector (A) and bolt.

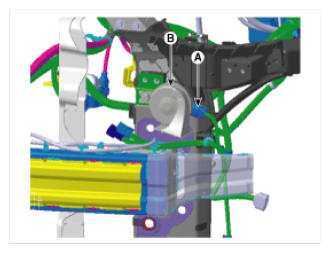

    Fig 1: Identifying Horn And Connector
    G09782460Courtesy of KIA MOTORS AMERICA, INC.
