Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the accelerator position sensor connector (A).
Remove the mounting nuts (B).

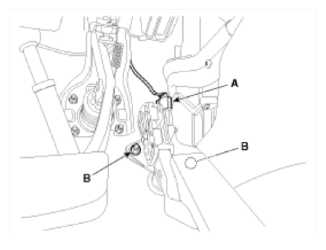

Fig 1: Identifying Accelerator Position Sensor Connector And Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cap (A)

Fig 2: Identifying Accelerator Position Sensor Cap
Courtesy of KIA MOTORS AMERICA, INC.
Remove the mounting bolt (A), and then remove the accelerator pedal module.

Fig 3: Identifying Accelerator Pedal Module Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
