Repair Procedures: Removal

Open the fuel filler door and unfasten the filler-neck assembly mounting bolts (A).

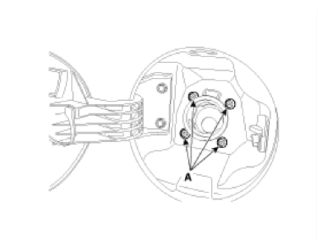

Fig 1: Identifying Filler-Neck Assembly Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle
Remove the left rear wheel & tire and the wheel guard (A).

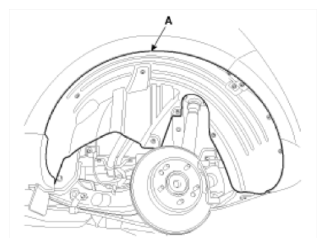

Fig 2: Identifying Wheel Guard
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel filter hose (A) and the ventilation hose (B).
Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolt (C).

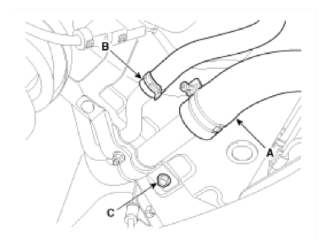

Fig 3: Identifying Fuel Filter Hose, Ventilation Hose And Bracket Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
