Repair Procedures: Removal

Release the residual pressure in fuel line (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Remove the rear seat cushion.

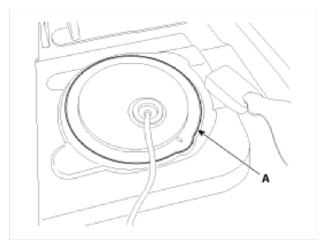

Remove the fuel pump service cover (A).

Fig 1: Identifying Fuel Pump Service Cover
Courtesy of KIA MOTORS AMERICA, INC.

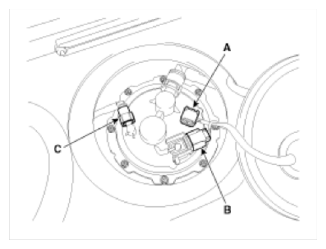

Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
Disconnect the fuel feed tube quick connector (C).

Fig 2: Identifying Fuel Pump, Fuel Tank Pressure Sensor And Fuel Feed Tube Quick Connector
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle and support the fuel tank with a jack.

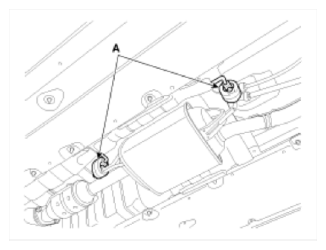

Disconnect the center muffler hangers (A).

Fig 3: Identifying Center Muffler Hangers
Courtesy of KIA MOTORS AMERICA, INC.

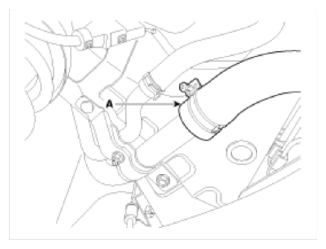

Disconnect the fuel filler hose (A).

Fig 4: Identifying Fuel Filler Hose
Courtesy of KIA MOTORS AMERICA, INC.

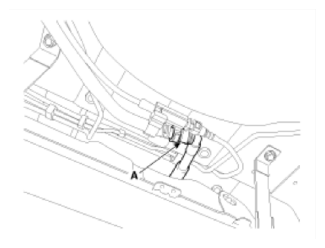

Disconnect the vapor tube quick-connector (A).

Fig 5: Identifying Vapor Tube Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.

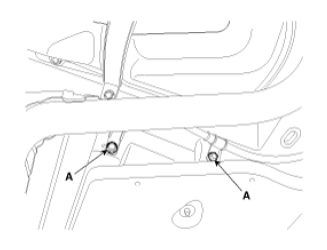

Remove the parking brake cable RH bracket mounting bolts (A) to obtain space for removing the fuel tank.

Fig 6: Identifying Parking Brake Cable RH Bracket Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

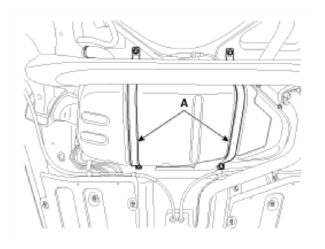

Remove the fuel tank from the vehicle after removing the fuel tank band (A).

Fig 7: Identifying Fuel Tank Band
Courtesy of KIA MOTORS AMERICA, INC.
