Monitor GDS Data

  1. Connect GDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data  " about related DTC with GDS.

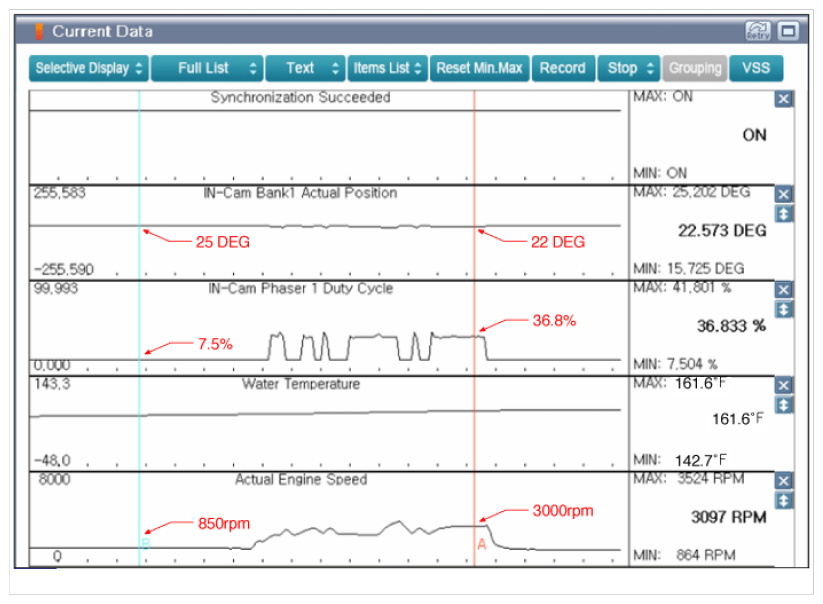

    Fig 1: Engine Idle After Warm Up Waveform
    G09776123Courtesy of KIA MOTORS AMERICA, INC.
  4. If the parameter is not similar with data shown in illustration, measure related waveforms with GDS.

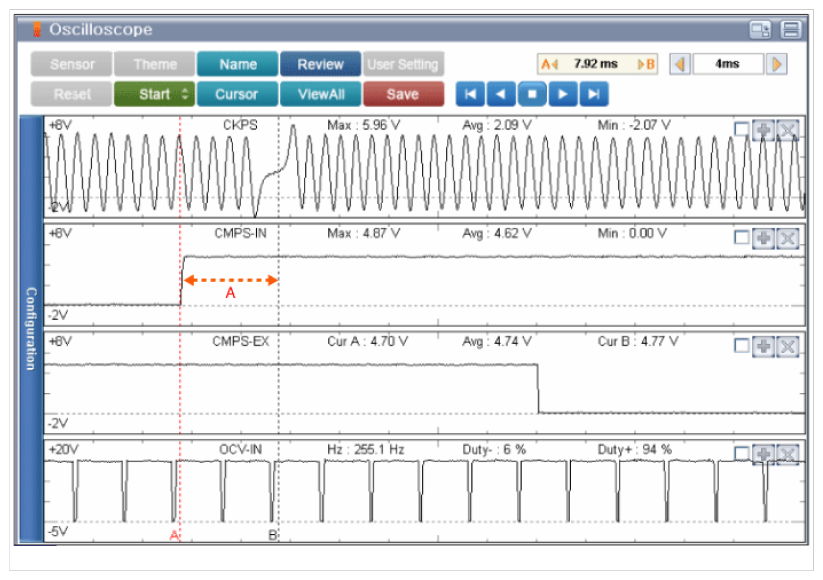

    Fig 2: Normal Waveforms Of OCV-In, CKPS And CMPS At Engine Idle
    G09776124Courtesy of KIA MOTORS AMERICA, INC.

    A: CKPS & CMPS (Intake side) synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.

  5. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
