Signal Waveform & Data

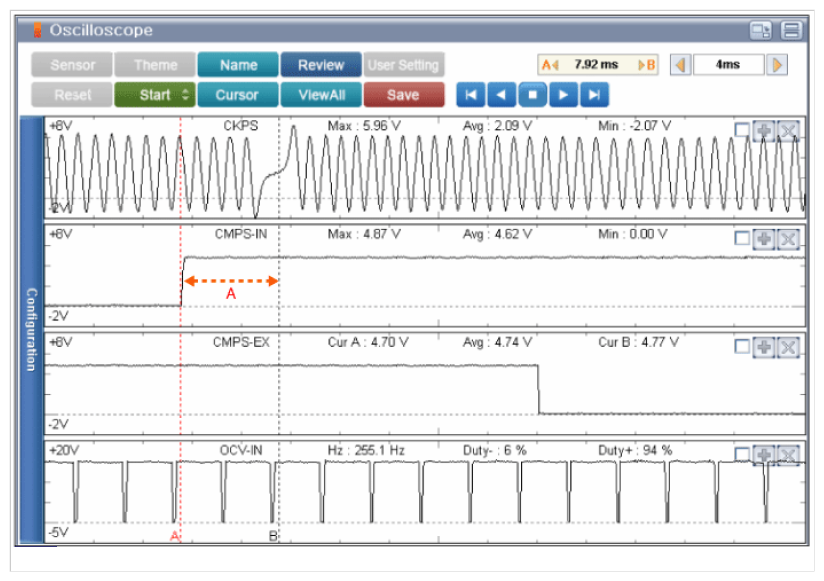

Fig 1: Normal Waveforms Of OCV-In, CKPS And CMPS At Engine Idle
G09776121Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (Intake side) synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.
