Signal Waveform & Data

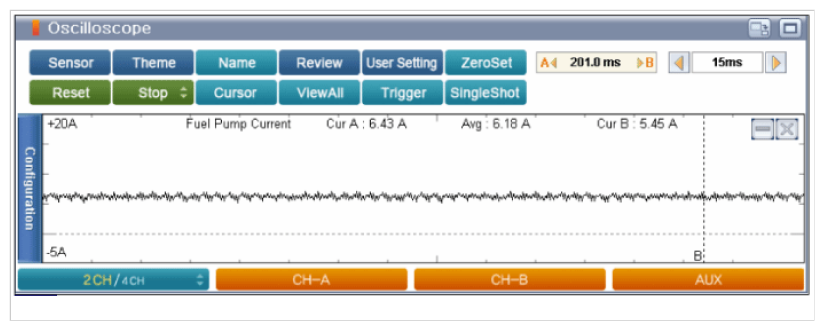

Fig 1: Fuel Pump Waveform - Engine Idle After Warm Up (Current Approx. 6.18A)
G09776597Courtesy of KIA MOTORS AMERICA, INC.
