Signal Waveform & Data

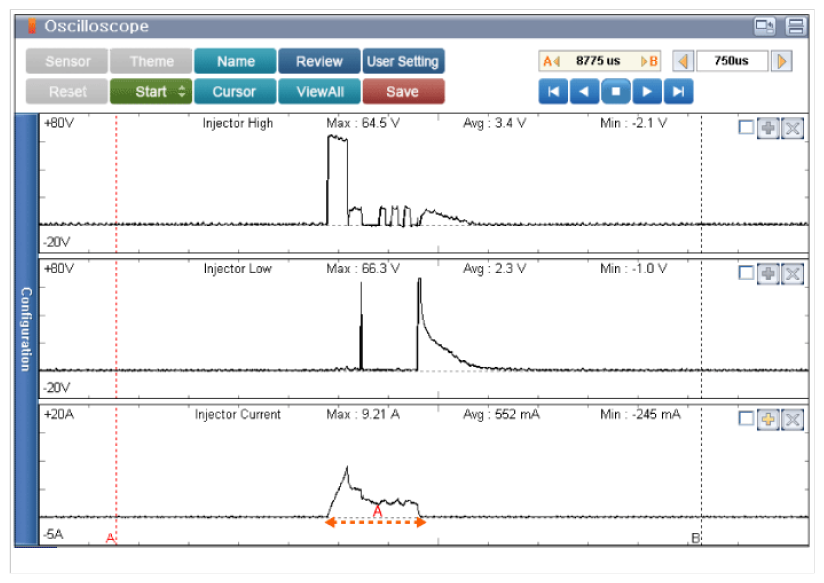

Fig 1: Display - Injector Signal Waveform (Engine Idle After Warm Up)

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx. 1545us

CH. A - Injector Max 64.4V

CH. AUX - Injector Current MAX 9.09A

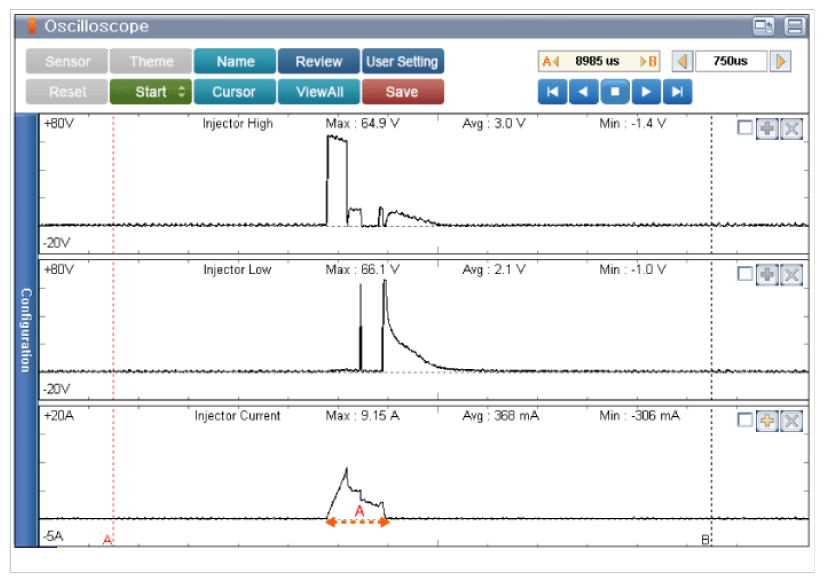

Fig 2: Display - Injector Signal Waveform

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx. 900us

CH. A - Injector Max 64.4V

CH. AUX - Injector Current MAX 9.09A

Fig 3: Display - Injector Signal Waveform (At Acceleration)

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx. 3360us

CH. A - Injector Max 65.2V

CH. AUX - Injector Current MAX 9.09A

* Test Method: Connect Channel A positive probe to Pin No. 2 (High side) and Channel A negative probe to Pin No. 1 (Low side) on the injector connector.

Connect CH AUX probe to control wire of Injector.
