Signal Waveform & Data

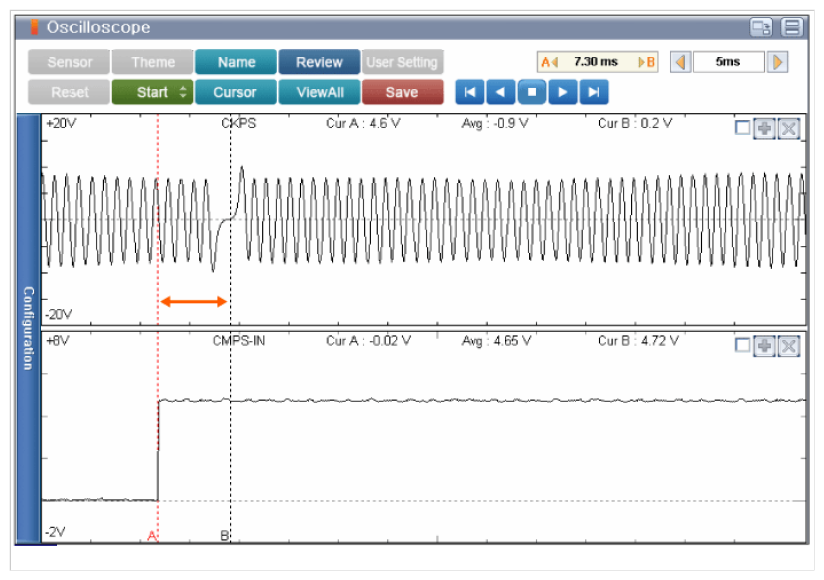

Fig 1: Normal Waveforms Of CKPS And CMPS-IN At Engine Idle
G09776834Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (Intake side) synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.
