Component Inspection

Check FTPS
1. Connect GDS to DLC (Data Link Cable).
2. Check the variation of FTPS by controlling the engine speed to 2, 000rpm

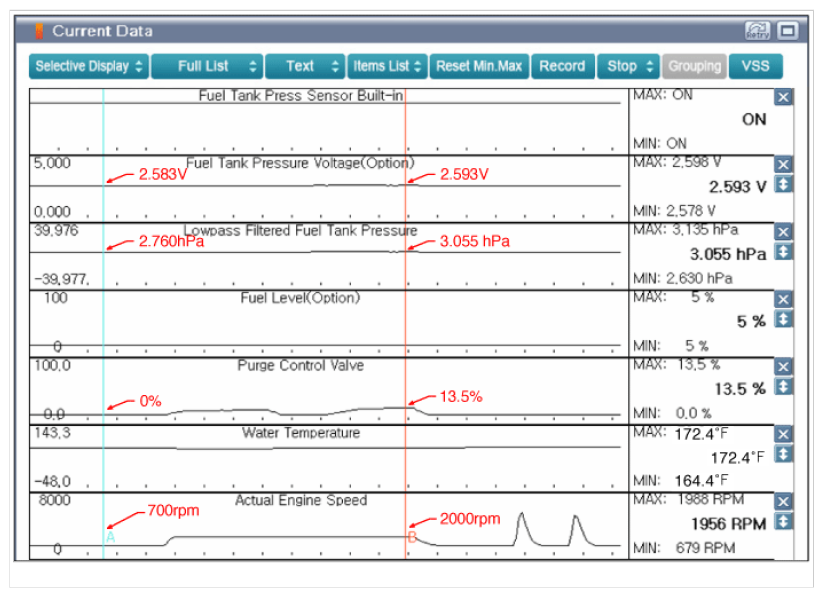

  Fig 1: Fuel Tank Pressure Waveforms - Variation Of FTPS With PCSV Operation
  Courtesy of KIA MOTORS AMERICA, INC.
3. Does the CCV operate properly? (Check variation)
  YES
  - Go to "SYSTEM INSPECTION " procedure.
  NO
  - Carefully re-do this troubleshooting guide steps.
  - If problem still occurs, replace FTPS and then go to "SYSTEM INSPECTION " procedure.
