System Inspection

Visual check
1. Check Camshaft and crankshaft alignment.

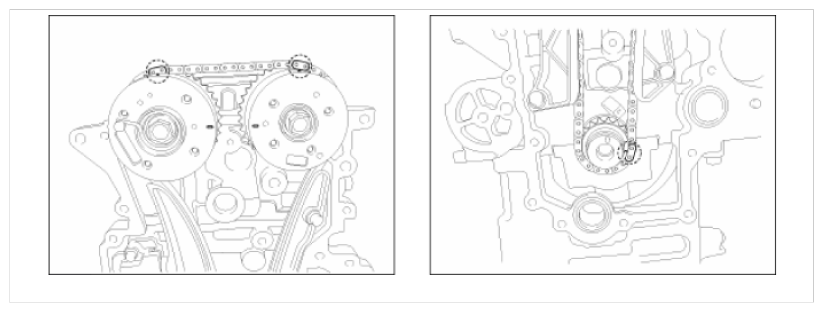

  Fig 1: Alignment Marks Of Camshafts And Crankshaft
  Courtesy of KIA MOTORS AMERICA, INC.
2. Have any problems been found?
  YES
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Carefully re-do this troubleshooting guide steps.
  - If problem still occurs, replace PCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
