Repair Procedures: Replacement

WARNING: This page is about a different car, the 2016 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the driver shower duct (A) after loosening the mounting screw.

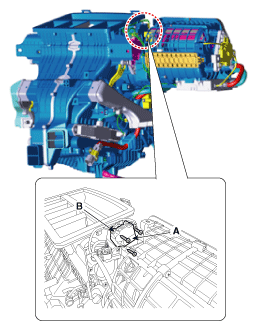

    Fig 1: Locate Driver Shower Duct With Mounting Screw
    G11938336Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
