Antenna Status Check

WARNING: This page is about a different car, the 2016 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".
    Fig 1: Scantool Display - ID Register
    G11938127Courtesy of KIA MOTORS AMERICA, INC.
  3. After IG ON, select the "Antenna Status Check".

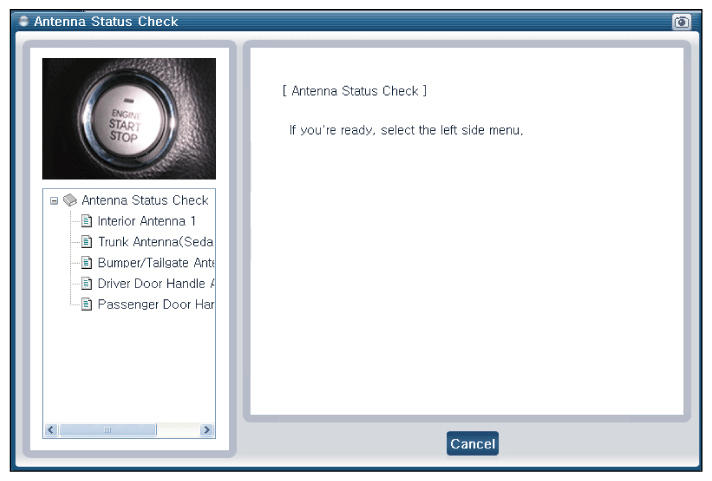

    Fig 2: Scantool Display - Antenna Status Check
    G11938128Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the corresponding antenna and operate it using GDS.

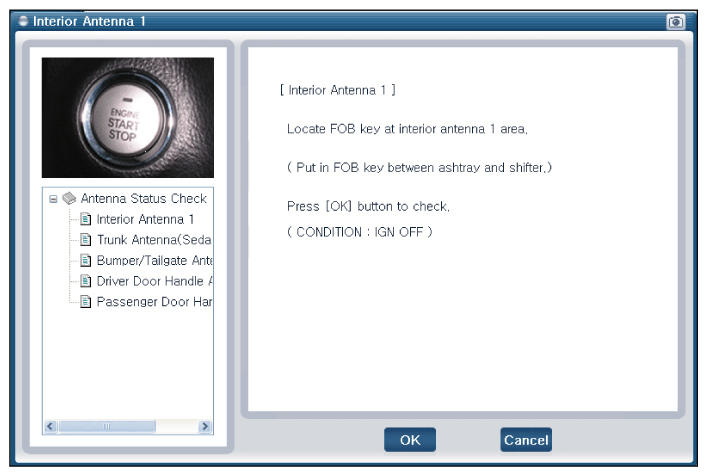

    Fig 3: Scantool Display - Interior Antenna 1
    G11938129Courtesy of KIA MOTORS AMERICA, INC.

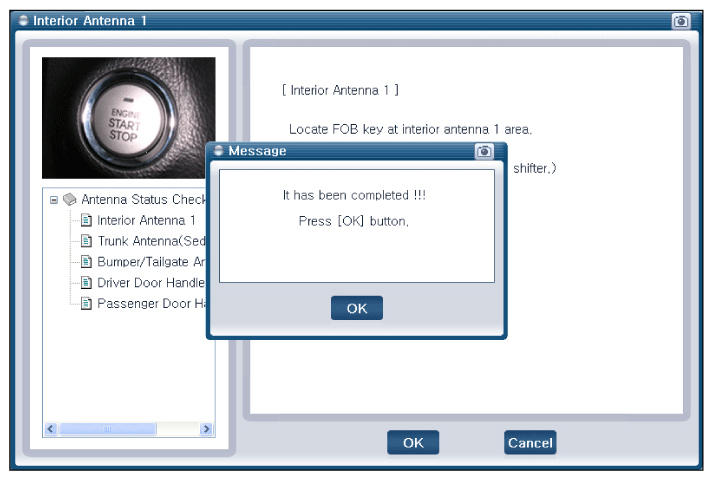

    Fig 4: Scantool Display - Interior Antenna 1 (Message)
    G11938130Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key operates normally, it means that the corresponding antenna, smart key (transmission & reception) and exterior receiver are also normal.
  6. Antenna status
    • INTERIOR Antenna
    • Trunk antenna
    • BUMPER/Antenna
    • DRV_DR Antenna
    • AST_DR Antenna
