Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the glove box and glove box housing.
(Refer to Body - "GLOVE BOX HOUSING ")
Disconnect the cluster ionizer connector (A).
Loosen the screws and then remove the cluster ionizer (A).

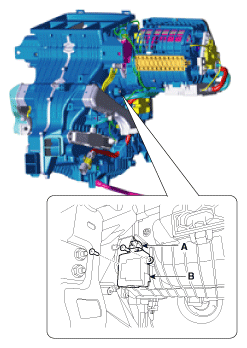

Fig 1: Locating Cluster Ionizer And Cluster Ionizer Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
