Checking Refrigerant Specifications

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Check refrigerant specifications label inside Engine room.

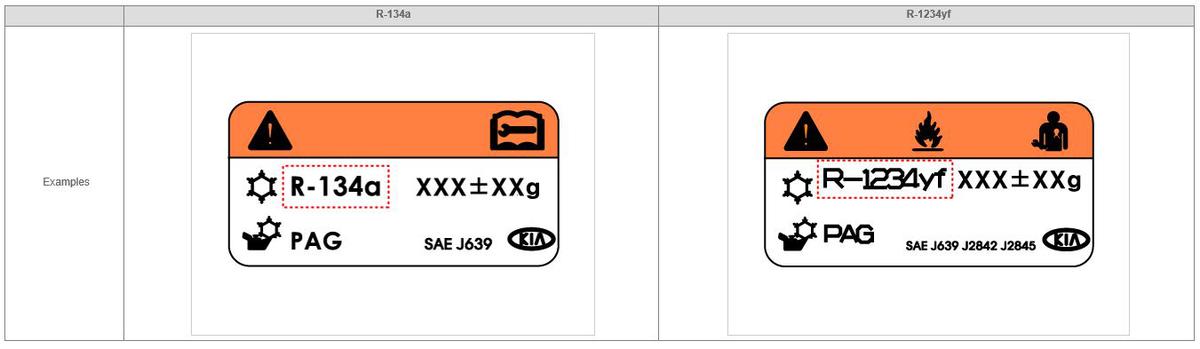

Fig 1: Refrigerant Specifications Label Inside Engine Room
Courtesy of KIA MOTORS AMERICA, INC.
If refrigerant specifications label is not visible, check the refrigerant service port diameter.

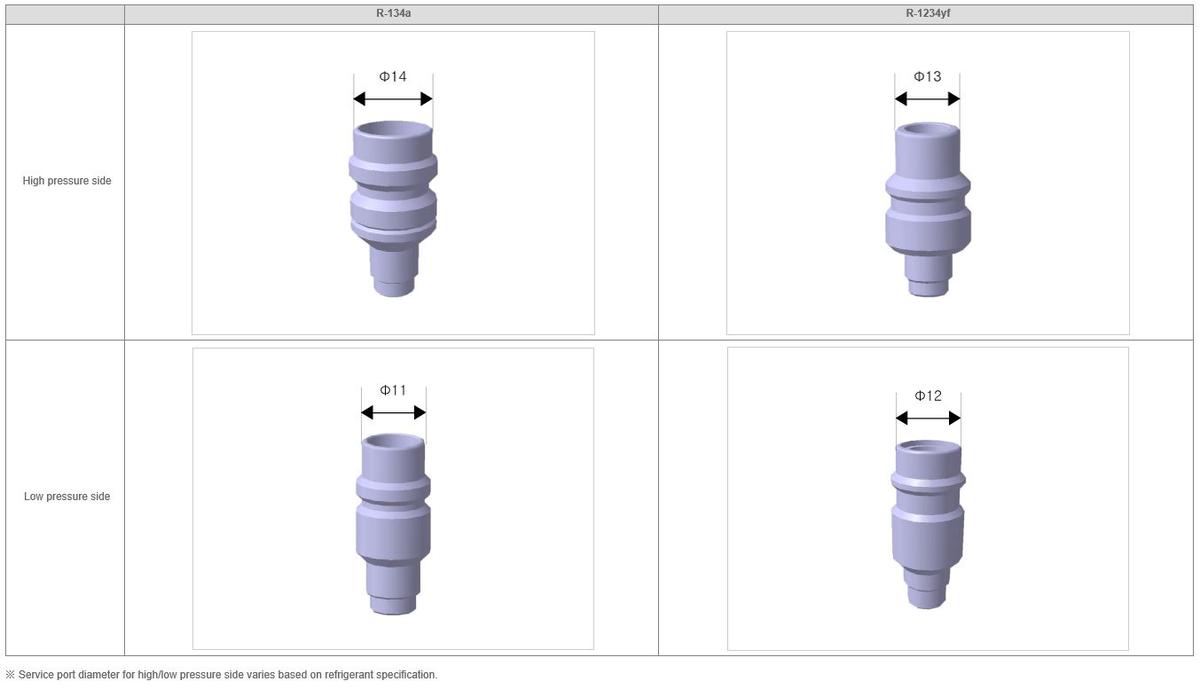

Fig 2: Checking Refrigerant Service Port Diameter
Courtesy of KIA MOTORS AMERICA, INC.

*Service port diameter for high/low pressure side varies based on refrigerant specification.
