Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

  3. Disconnect the connector (A) and then remove the blower resistor (B) after loosening the mounting screws.

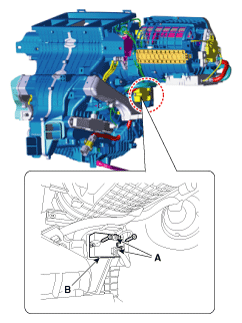

    Fig 1: Locating Blower Resistor And Connector
    G11938451Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
