Serial Communication Status Check

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Serial Communication Line Check".

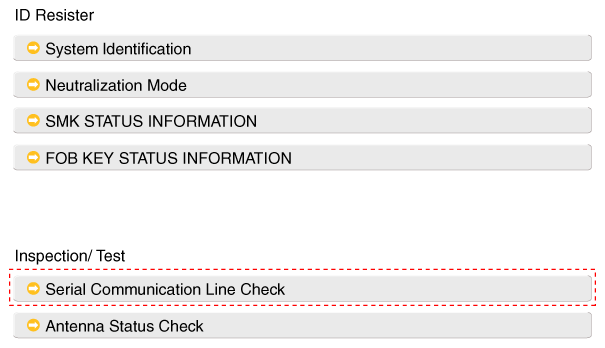

Fig 1: Scantool Display - ID Register
Courtesy of KIA MOTORS AMERICA, INC.
After IGN ON, select the "Receiver Communication Line Check".

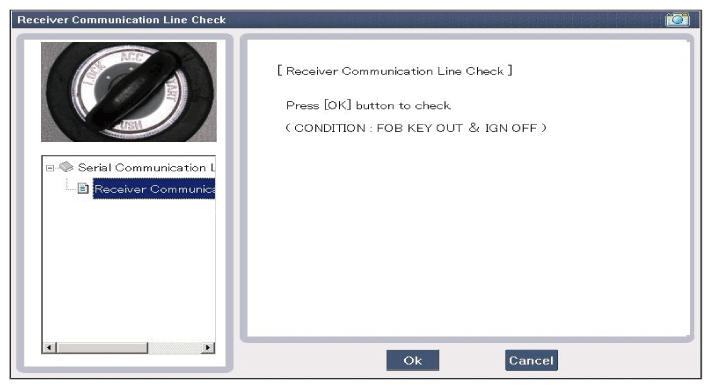

Fig 2: Scantool Display - Receiver Communication Line Check
Courtesy of KIA MOTORS AMERICA, INC.
Check the serial communication line with a GDS.
If the smart key operates normally, it means that the communication of smart key unit and exterior receiver are also normal.
In case of abnormal operation of smart key, check the following items:
- Disconnected or not responding exterior receiver communication line
- The exterior receiver communication line disconnection and ground connection.
