[LH]

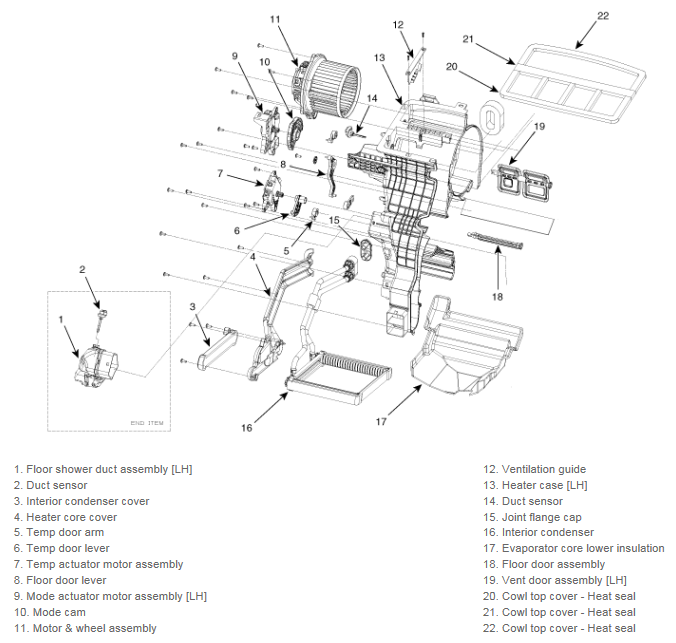

Fig 1: Exploded View Of Heater Unit (LH) Components
Courtesy of KIA MOTORS AMERICA, INC.
[RH]

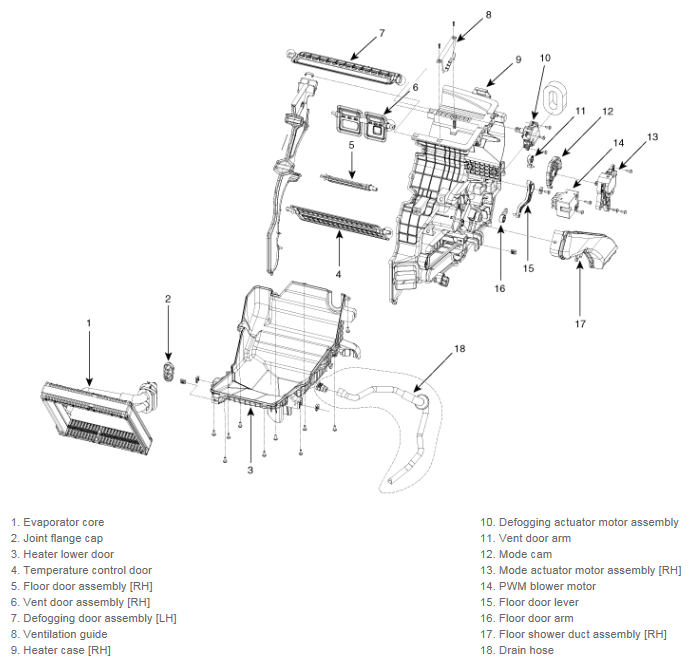

Fig 2: Exploded View Of Heater Unit (RH) Components
