Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Remove the driver's side shower duct (A) after loosening the screw.

Fig 1: Removing Driver'S Side Shower Duct
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.

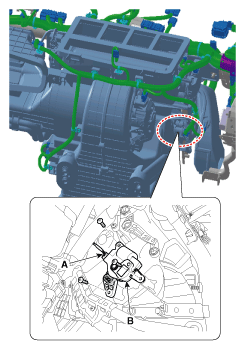

Fig 2: Locating Temperature Control Actuator And Connector With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
