LIN Communication Inspection

WARNING: This page is about a different car, the 2017 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ignition "OFF"
  2. Refer to "PAS SENSOR CONNECTOR REMOVAL " and remove necessary parts to get access to Front & Rear PAS Sensor connector.
  3. Ignition "ON"
  4. Back probe and measure signal waveform between Pin No. 1 (LIN) terminal of each Front & Rear PAS sensor harness connector and chassis ground.

    Specification:  Refer to Fig 1 below

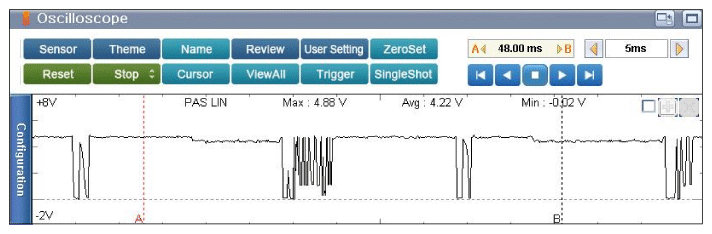

    Fig 1: Screen Display - Signal Waveform Of Parking Sensor
    G11934858Courtesy of KIA MOTORS AMERICA, INC.
  5. Is measured value within specification?

    YES

    NO

    • If no problems were found with the circuits or connectors, replace concerned Front & Rear Sensor and go to "Verification Of Vehicle Repair " procedure.
