Components Location
WARNING:
This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

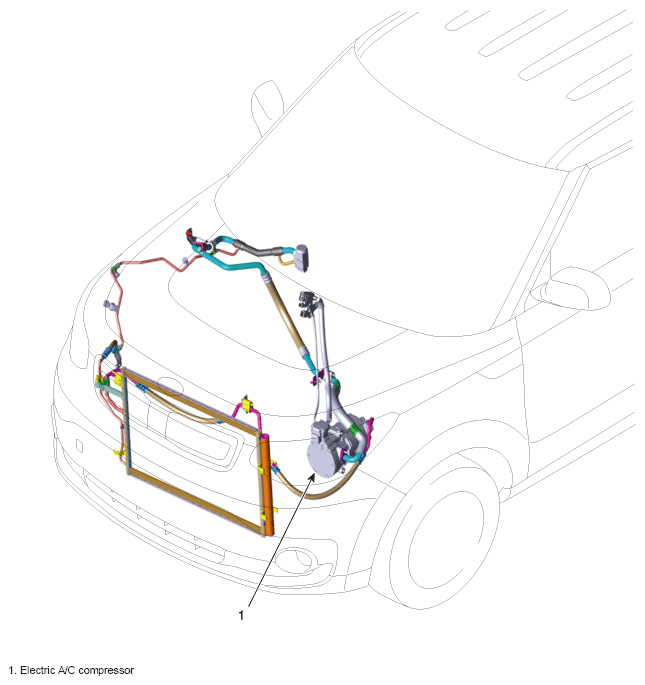

[Without Heat Pump]
Fig 1: Electric A/C Compressor (Without Heat Pump)
Courtesy of KIA MOTORS AMERICA, INC.

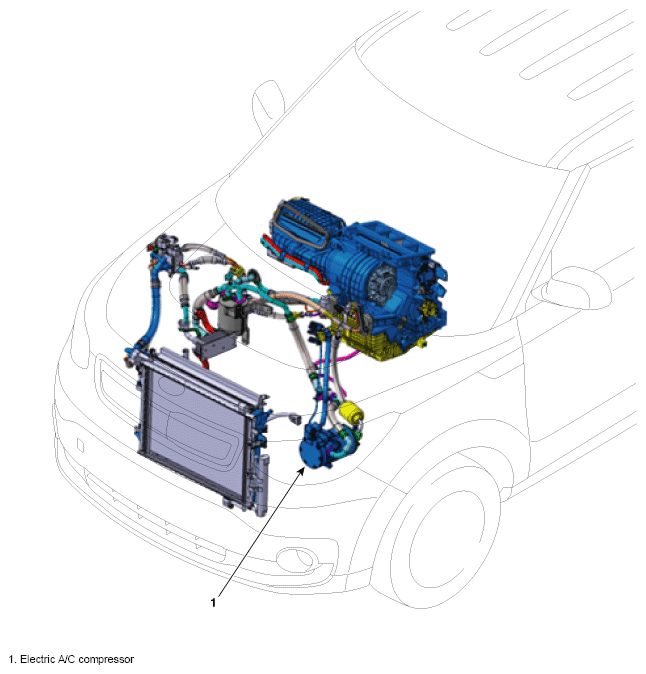

[With Heat Pump]
Fig 2: Electric A/C Compressor (With Heat Pump)
Courtesy of KIA MOTORS AMERICA, INC.
