Serial Communication Status Check

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Serial Communication Line Check".

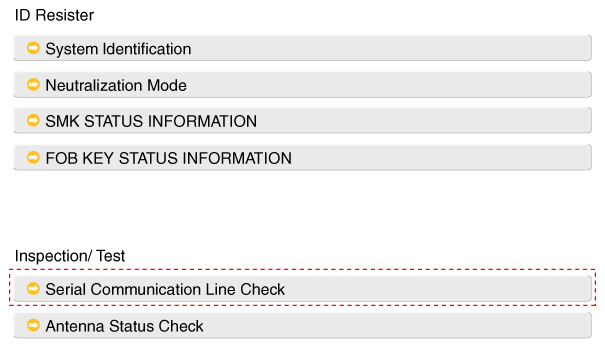

Fig 1: Screen Display - Serial Communication Line Check
Courtesy of KIA MOTORS AMERICA, INC.
After IGN ON, select the "Receiver Communication Line Check".

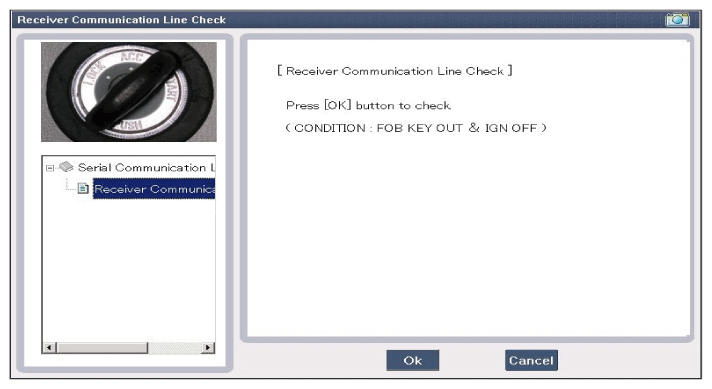

Fig 2: Screen Display - Receiver Communication Line Check
Courtesy of KIA MOTORS AMERICA, INC.
Check the serial communication line with a GDS.
If the smart key operates normally, it means that the communication of smart key unit and exterior receiver are also normal.
In case of abnormal operation of smart key, check the following items:
- Disconnected or not responding exterior receiver communication line
- The exterior receiver communication line disconnection and ground connection.

Interior Antenna Actuation Check

Set the smart key in the following shaded area and check that the IG is ON.

Fig 3: Positioning Smart Key
Courtesy of KIA MOTORS AMERICA, INC.
If the ignition is ON, the antenna runs normally.
Check the interior antenna ignition mode.
Set the smart key in the following shaded area and actuate the antenna. Check that the LED of smart key is blinking.

Fig 4: Checking LED Of Smart Key
Courtesy of KIA MOTORS AMERICA, INC.
If the LED of smart key is not blinking, check that the antenna is in the shaded area.

Fig 5: Antenna

Courtesy of KIA MOTORS AMERICA, INC.
