Smart Key Status Check

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "SMK STATUS INFORMATION".

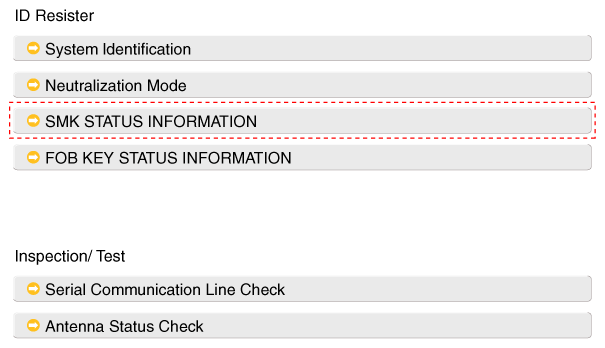

Fig 1: Screen Display - ID Register

Courtesy of KIA MOTORS AMERICA, INC.

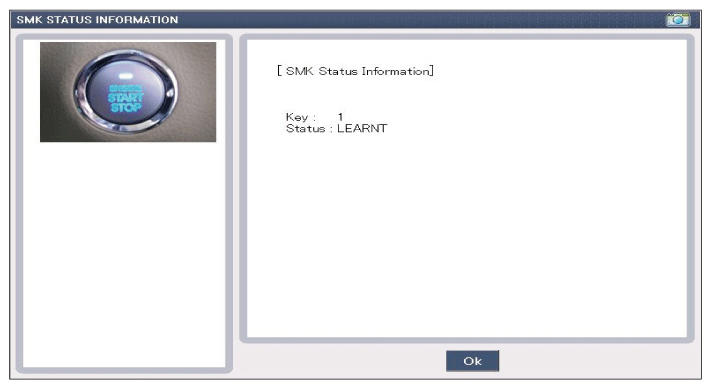

Fig 2: Screen Display - SMK Status Information

Courtesy of KIA MOTORS AMERICA, INC.
