Circuit Diagram
WARNING:
This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

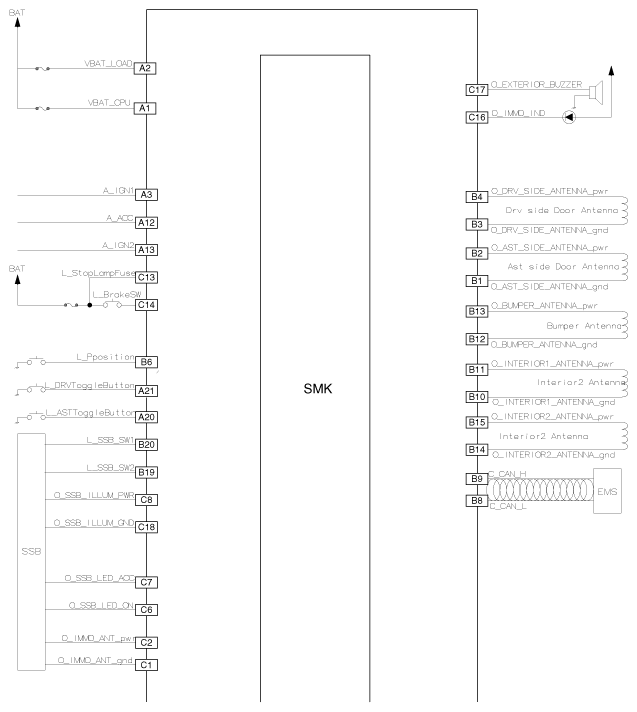

Fig 1: SMK Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

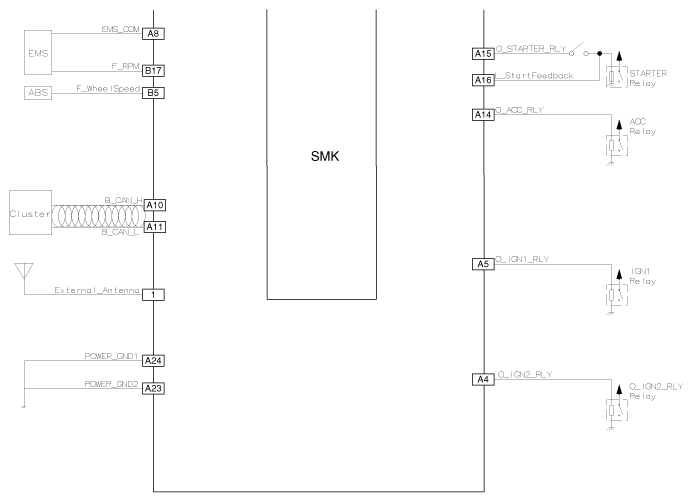

Fig 2: SMK Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
