Smart Key Code Saving

WARNING: This page is about a different car, the 2015 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, and turn the power on GDS.

Fig 1: Driver Side Crash Pad Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then perform Smart Key Code Saving "Smart key code saving".

Fig 2: Screen Display - ID Register
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, press the "ENTER" button to display the following screen.

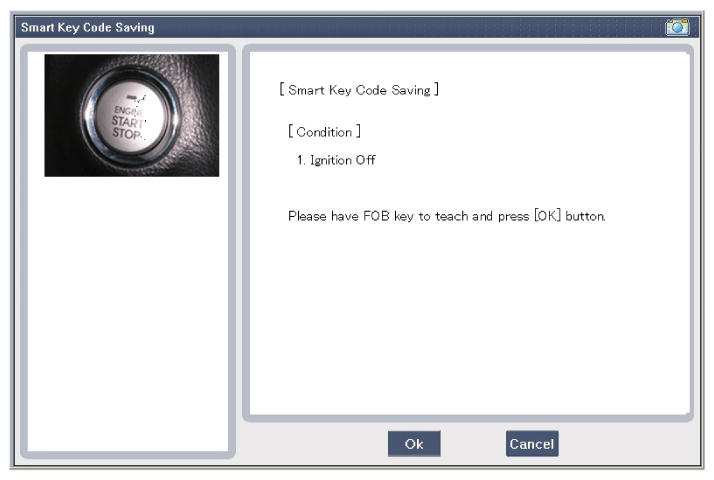

Fig 3: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin code" for first key teaching.

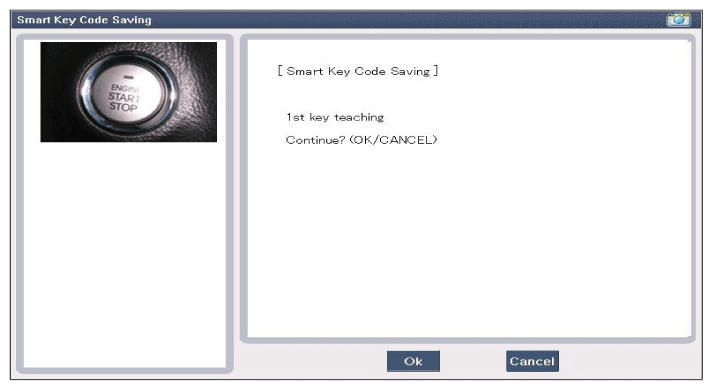

Fig 4: Screen Display - Smart Key Code Saving (Neutral) (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Screen Display - Smart Key Code Saving (Neutral) (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

Fig 6: Screen Display - Smart Key Code Saving (First Key Teaching)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Screen Display - Smart Key Code Saving (Smart Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.

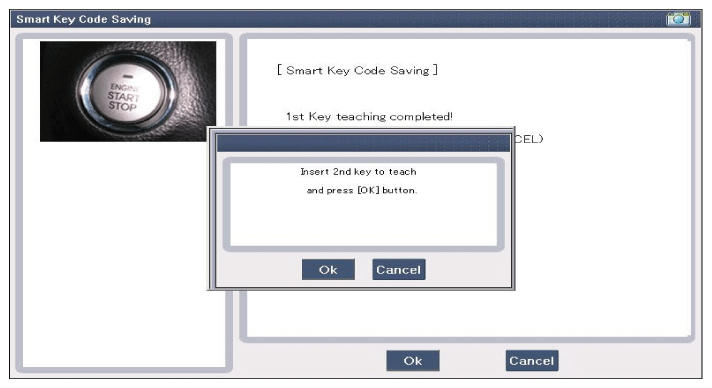

Fig 8: Screen Display - Smart Key Code Saving (First Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Screen Display - Smart Key Code Saving (First Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

Fig 10: Screen Display - Smart Key Code Saving (Smart Key Teaching Completed)

Courtesy of KIA MOTORS AMERICA, INC.
