Repair Procedures: Inspection

  1. Operate the auto light switch, then check for continuity between terminals of multi-function switch connector.

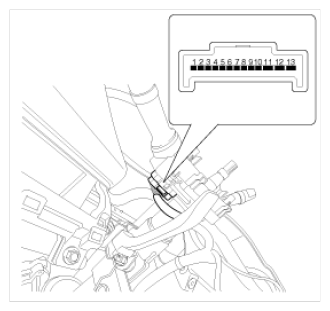

    Fig 1: Identifying Auto Light Switch Connector Pins
    G09782351Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Connector Pins Reference Chart
    G09782352Courtesy of KIA MOTORS AMERICA, INC.
