Component Inspection

Connect GDS to DLC (Data Link Cable).
Warm up the engine to normal operating temperature.
Perform the "Actuation Test" with GDS.

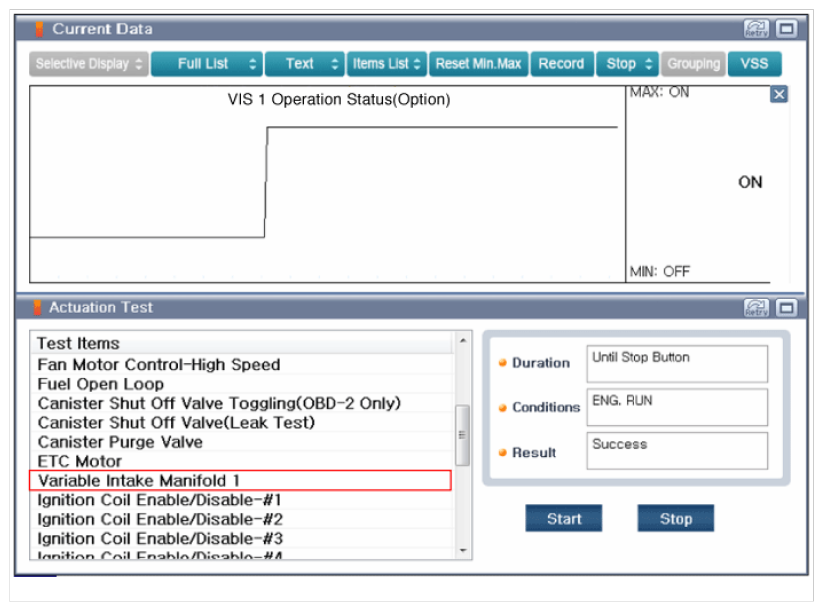

Fig 1: Variable Intake Manifold 1 Actuation Test Screen
Courtesy of KIA MOTORS AMERICA, INC.

Inspect VIS
1. IG Key "OFF".
2. Disconnect VIS connector.
3. Measure resistance between power and control terminal of the VIS. (Component Side)
  Specification: Approx. 33.99 Ω [20°C (68 °F)]

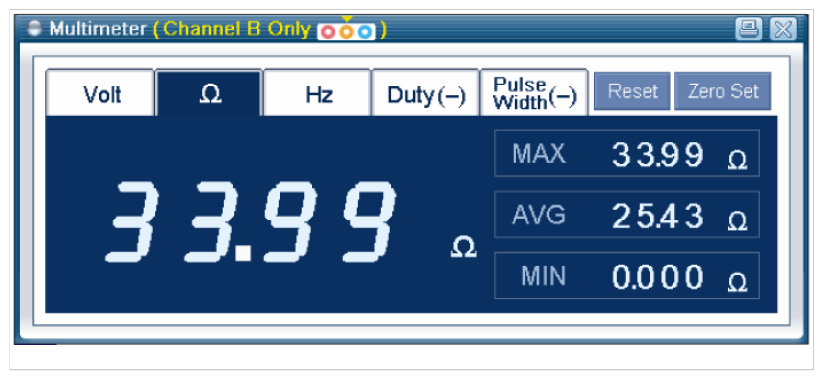

  Fig 2: Resistance Of VIS
  Courtesy of KIA MOTORS AMERICA, INC.
Confirm Part Inspection
1. Does the PCSV operate properly? (Check variation)
  YES
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Carefully re-do this troubleshooting guide steps.
  - If problem still occurs, replace PCSV and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
