Monitor GDS Data

Connect GDS to DLC (Data Link Cable).
Warm up the engine to normal operating temperature.
Check the "Current Data" about related DTC with GDS.

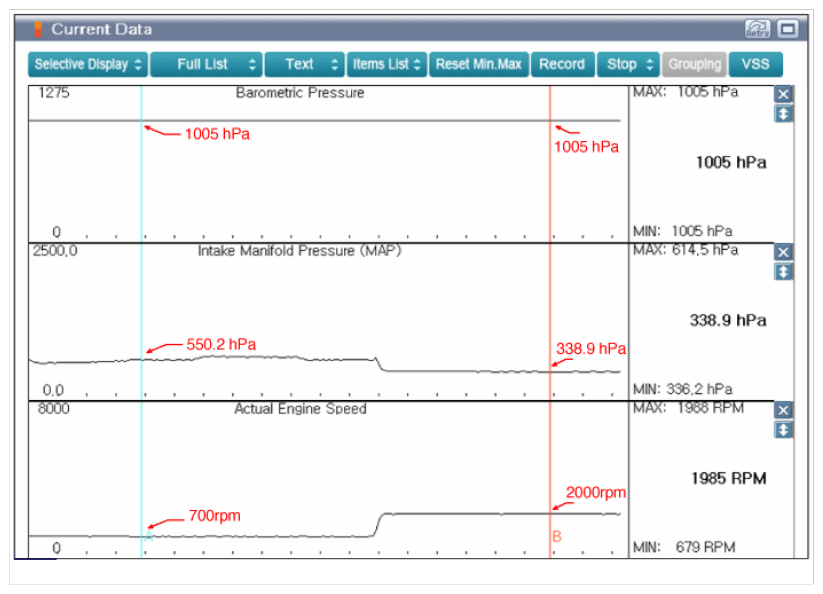

Fig 1: Barometric Pressure Waveforms - Engine Idle After Warm Up & 2000 RPM
Courtesy of KIA MOTORS AMERICA, INC.
Are the parameters displayed correctly?
YES
- The system is operating correctly at this time. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Retry all of procedures once again. If the BPS is in abnormal condition, replace it. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
