Repair Procedures: Replacement

WARNING: This page is about a different car, the 2016 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Wear gloves to protect hands from injury.

Information

When removing and installing the tail gate, work in a group of two or more.

Remove the tail gate trim.
(Refer to Tail Gate - "TAIL GATE TRIM ")
Disconnect the washer nozzle hose (A).

Fig 1: Disconnect Washer Nozzle Hose
Courtesy of KIA MOTORS AMERICA, INC.

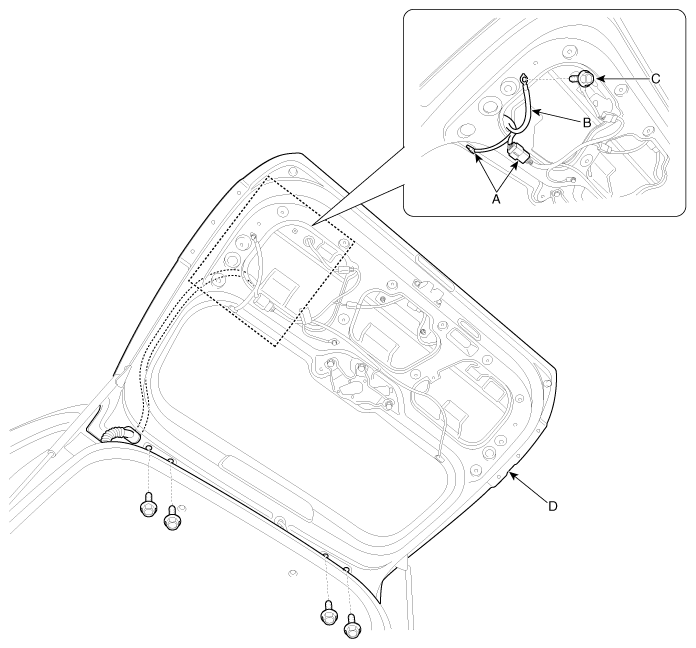

Disconnect the connectors (A) and tail gate wiring harness (B).
Loosen the ground bolts (C).
After loosening the mounting bolts, remove the tail gate assembly (D).
Tightening Torque:

21.6~26.5 N.m (2.2~2.7 kgf.m, 15.9~19.5 lb-ft)

Fig 2: Disconnect Connectors And Tail Gate Wiring Harness
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver, lift the socket clips (A) up slightly on both ends of the tail gate lifter (B).

Fig 3: Lift Socket Clips On Both Ends Of Tail Gate Lifter
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the tail gate locks/unlocks and opens/closes properly.
- Adjust the tail gate alignment.
- Make sure that the connectors are connected properly.
- Replace any damaged clips.
