Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to the DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING )
Remove the steering wheel.
(Refer to the "STEERING COLUMN & SHAFT ")
Loosen the mounting screws from the rear steering wheel cover.

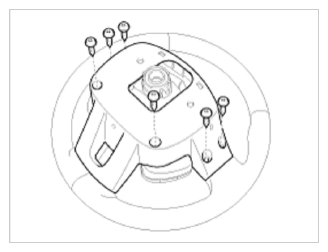

Fig 1: Mounting Screws From Rear Steering Wheel Cover
Courtesy of KIA MOTORS AMERICA, INC.
Separate the upper steering wheel remote control switch (A) from the steering wheel.

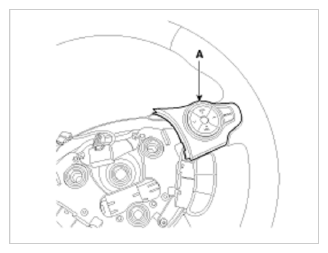

Fig 2: Upper Steering Wheel Remote Control Switch
Courtesy of KIA MOTORS AMERICA, INC.
Remove the upper steering wheel control switch (B) disconnecting the connector (A).

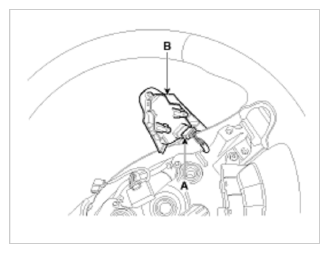

Fig 3: Steering Wheel Control Switch & Connector
Courtesy of KIA MOTORS AMERICA, INC.
