Repair Procedures: Adjustment

Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")

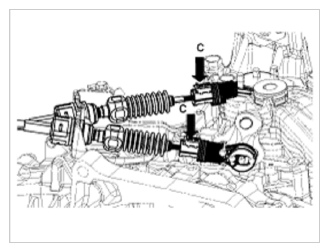

Ensure to press adjust locking button in direction of "C".

Fig 1: Pressing Adjust Locking Button C
Courtesy of KIA MOTORS AMERICA, INC.
If there is sticky feel. Readjust control cable length.
Install the battery and battery tray.
(Refer to "BATTERY ")
Install the air cleaner assembly.
(Refer to "AIR CLEANER ")
