Repair Procedures: Installation

NOTE: When installing, set room side shift lever and T/M side lever to "4th" gear position.

Tighten the nut (B) after install the retainer (A).
Tightening torque:

11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

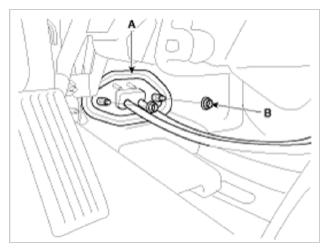

Fig 1: Nut & Retainer
Courtesy of KIA MOTORS AMERICA, INC.
Check the Shift lever is in "4th" gear position.
Install the cable socket (A) on the shift lever assembly.

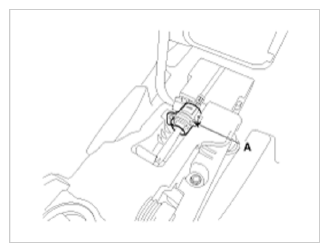

Fig 2: Installing Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift cable (B) after installing the clip (A).

Fig 3: Shift Cable & Clip
Courtesy of KIA MOTORS AMERICA, INC.
Install the select cable socket (C) on the shift lever assembly.
Install the clip (A) after installing the select cable (B).

Fig 4: Select Cable Socket, Clip, & Select Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install the bracket (A).

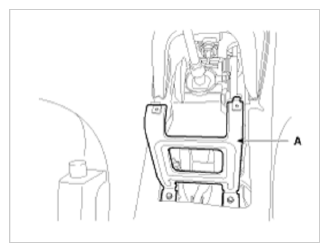

Fig 5: Installing Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Install the rear heating joint duct (A).
Install the floor console assembly.
(Refer to "FLOOR CONSOLE ")
Rotating clockwise shift lever knob (A).

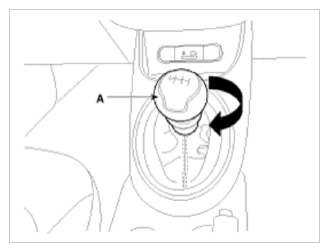

Fig 6: Rotating Shift Lever Knob Clockwise
Courtesy of KIA MOTORS AMERICA, INC.
Install the control cable (B) and clip (A) on the bracket.
NOTE: Do not reuse the clip (A).

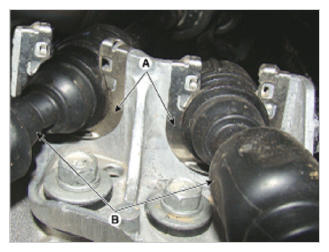

Fig 7: Installing Control Cable & Clip
Courtesy of KIA MOTORS AMERICA, INC.
Install the control cable

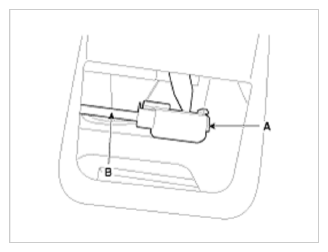

1. Install the control cable (A) in transaxle lever pin.

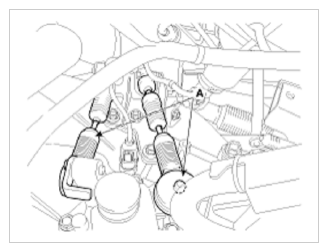

  Fig 8: Installing Control Cable
  Courtesy of KIA MOTORS AMERICA, INC.

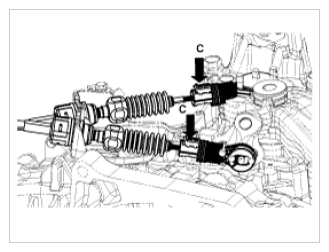

2. Ensure to press adjust locking button in direction of "C".

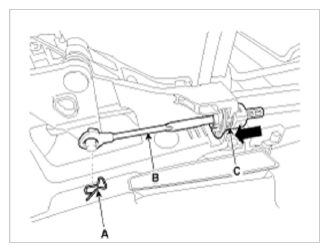

  Fig 9: Pressing Adjust Locking Button
  Courtesy of KIA MOTORS AMERICA, INC.
3. Install the washer (A) and pin (B).

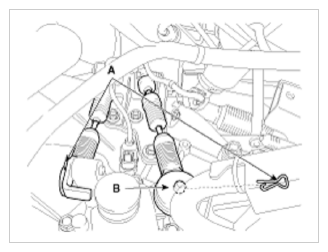

  Fig 10: Installing Washer & Pin
  Courtesy of KIA MOTORS AMERICA, INC.
Install the battery and battery tray.
(Refer to "BATTERY ")
Install the air cleaner assembly.
(Refer to "AIR CLEANER ")
