Repair Procedures: Removal

Shift lever to "4th" gear position.

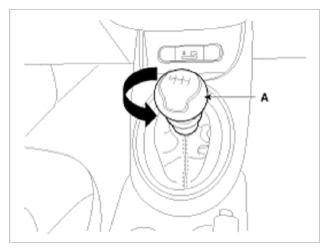

Rotating counter-clockwise shift lever knob (A).

Fig 1: Rotating Shift Lever Knob Counter-Clockwise
Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ")

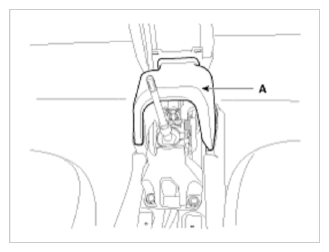

Remove the rear heating joint duct (A).

Fig 2: Removing Rear Heating Joint Duct
Courtesy of KIA MOTORS AMERICA, INC.

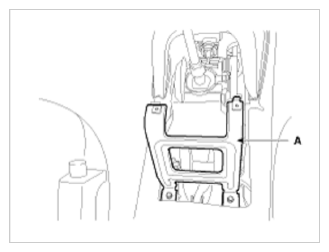

Remove the bracket (A).

Fig 3: Removing Bracket
Courtesy of KIA MOTORS AMERICA, INC.

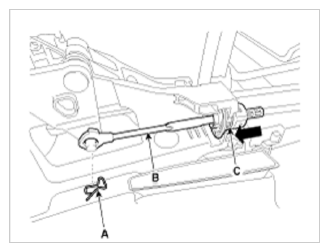

Remove the select cable (B) after removing the snap pin (A).
Remove the cable socket (C) from lever assembly after pulling in the direction of the arrow.

Fig 4: Snap Pin, Select Cable, & Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.

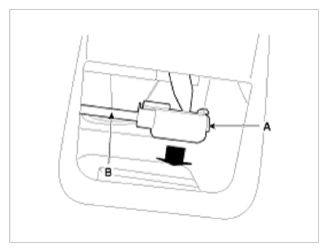

Remove the shift cable (B) after removing the clip (A).

Fig 5: Shift Cable & Clip
Courtesy of KIA MOTORS AMERICA, INC.

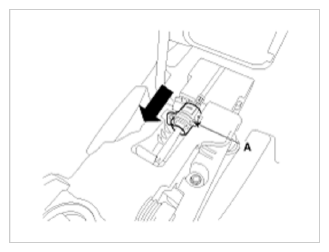

Remove the cable socket (A) from lever assembly after pulling in the direction of the arrow.

Fig 6: Removing Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.

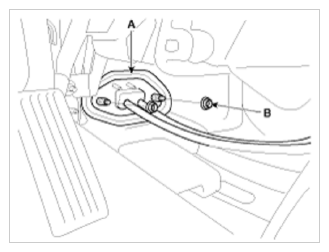

Remove the retainer (A) after loosen the nut (B).

Fig 7: Retainer & Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")

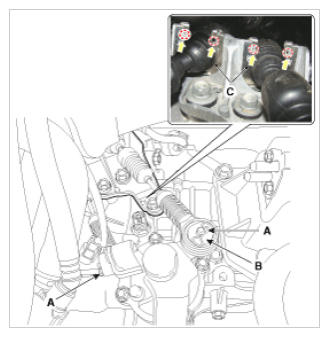

Remove the shift & select cable.
1. Remove the pin (A) and washer (B).
2. Make unlock clip (C) and then remove the shift & select cable and the clip (C) from the bracket.

  Fig 8: Removing Shift & Select Cables
  Courtesy of KIA MOTORS AMERICA, INC.
