Repair Procedures: Installation

Install in the reverse order of removal.
NOTE:
- When installing, set control shaft lever to neutral position.

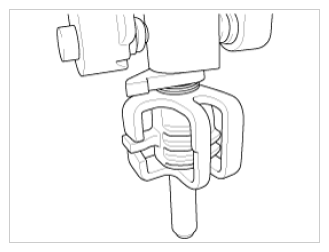

  Fig 1: Installing Control Shaft Lever
  Courtesy of KIA MOTORS AMERICA, INC.
- When installing, apply the sealant as shown in the illustration.
  Specified sealant: LOCTITE 5060 or Anaerobic adhesives type J (For flange)

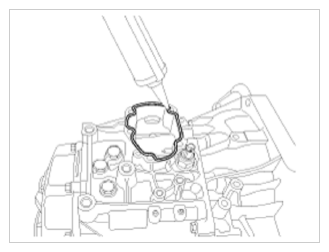

  Fig 2: Applying Sealant
  Courtesy of KIA MOTORS AMERICA, INC.
After installing, check to be sure that this part operates as designed at each range of T/M side corresponding to each position of shift lever.
