Repair Procedures: Removal

Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")
Set shift lever to "N" position.
Remove the control cable from the control shaft after remove the pin (A) and washer (B).

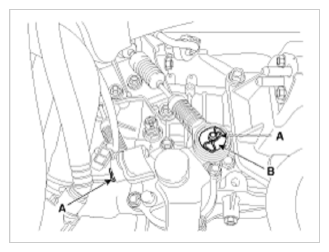

Fig 1: Removing Pin & Washer
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control shaft assembly after loosen the bolts.
Tightening torque:

19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 lb-ft)

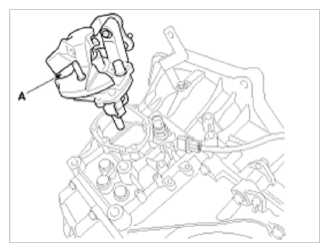

Fig 2: Removing Control Shaft Assembly
Courtesy of KIA MOTORS AMERICA, INC.
