Repair Procedures: Removal

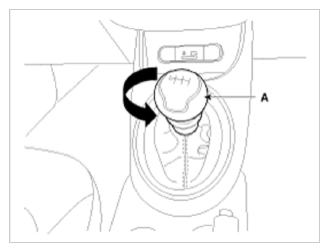

Rotating counter-clockwise shift lever knob (A).

Fig 1: Rotating Shift Lever Knob Counter-Clockwise
Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ")

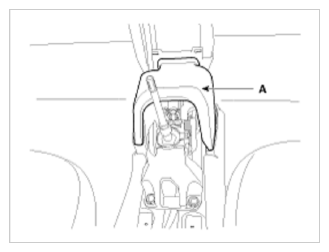

Remove the rear heating joint duct (A).

Fig 2: Removing Rear Heating Joint Duct
Courtesy of KIA MOTORS AMERICA, INC.

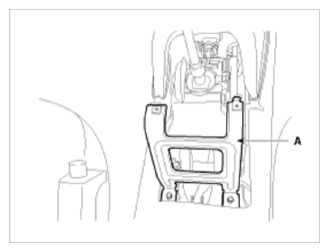

Remove the bracket (A).

Fig 3: Removing Bracket
Courtesy of KIA MOTORS AMERICA, INC.

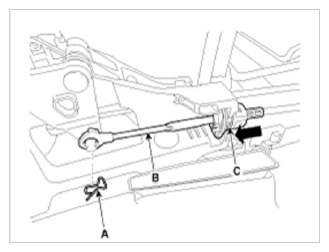

Remove the select cable (B) after removing the snap pin (A).
Remove the cable socket (C) from lever assembly after pulling in the direction of the arrow.

Fig 4: Select Cable, Snap Pin, & Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.

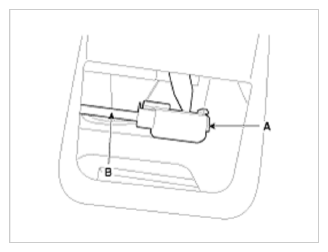

Remove the shift cable (B) after removing the clip (A).

Fig 5: Shift Cable & Clip
Courtesy of KIA MOTORS AMERICA, INC.

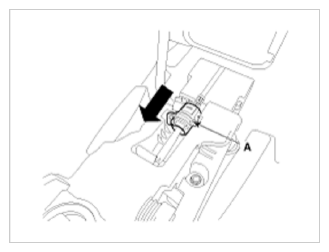

Remove the cable socket (A) from lever assembly after pulling in the direction of the arrow.

Fig 6: Removing Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.

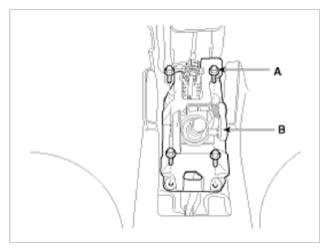

Remove the shift lever assembly (B) by removing the bolts (A).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 7: Removing Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
