BSD Radar Calibration (Reference. 1)

Connect GDS to Data Link Connector (DLC).
Ignition "ON".
Select "Vehicle S/W Management" with GDS.
Select "BSD Radar Calibration" under Vehicle S/W Management.
Refer to following procedure to perform Vehicle S/W Management.

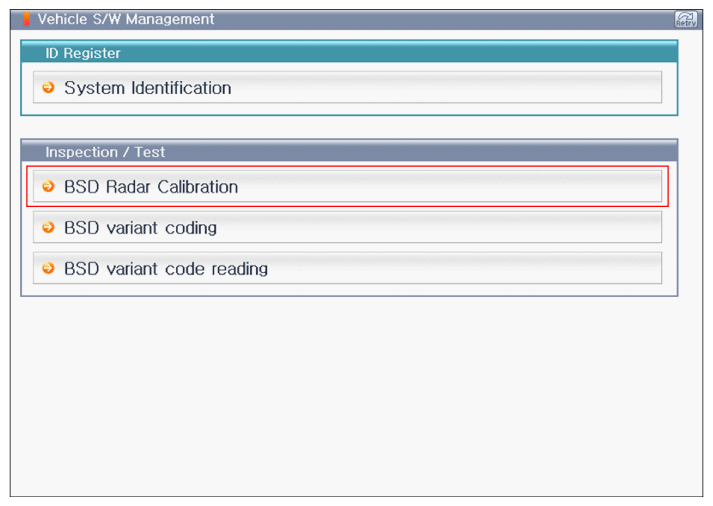

Fig 1: Scantool Display - BSD Radar Calibration 1

G11787321

Courtesy of KIA MOTORS AMERICA, INC.

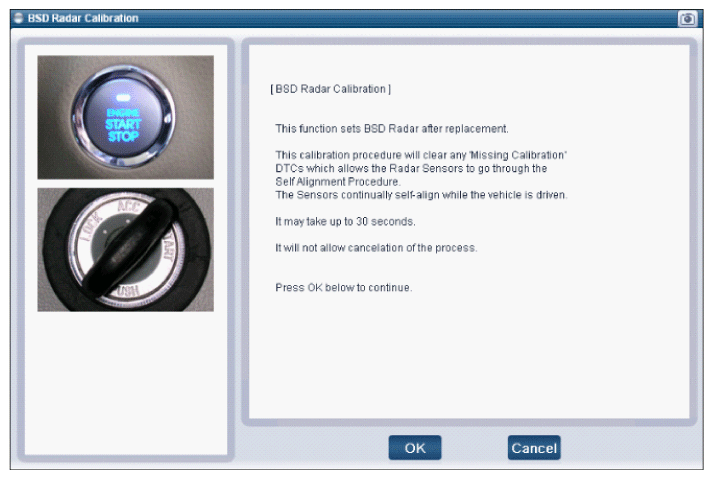

Fig 2: Scantool Display - BSD Radar Calibration 2

G11787322

Courtesy of KIA MOTORS AMERICA, INC.

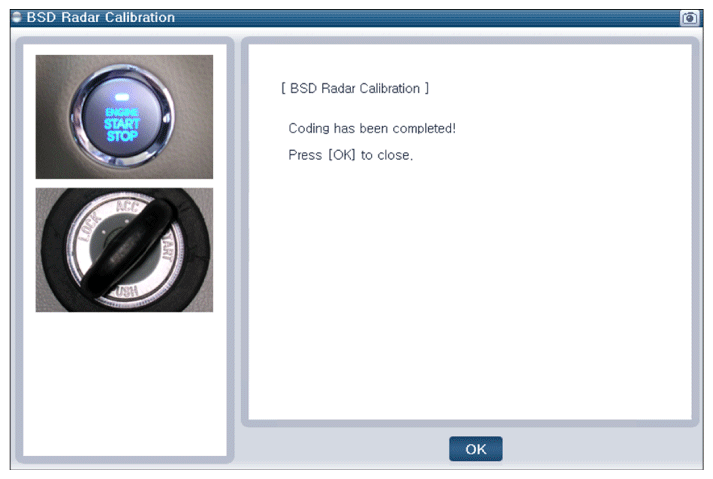

Fig 3: Scantool Display - BSD Radar Calibration 3

G11787323

Courtesy of KIA MOTORS AMERICA, INC.
