BSD Variant Code Reading

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Select "Vehicle S/W Management"  with GDS.
  4. Select "BSD Variant Code Reading" under Vehicle S/W Management.
  5. Refer to following procedure to perform Vehicle S/W Management.

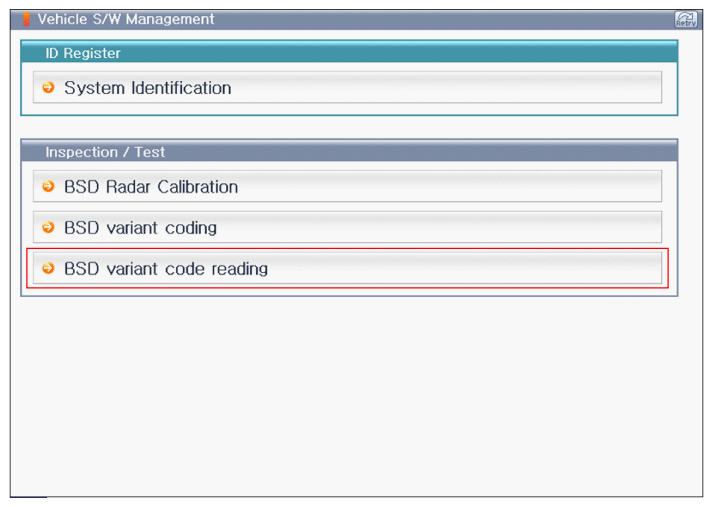

Fig 1: Scantool Display - BSD Variant Code Reading 1
G11787330Courtesy of KIA MOTORS AMERICA, INC.

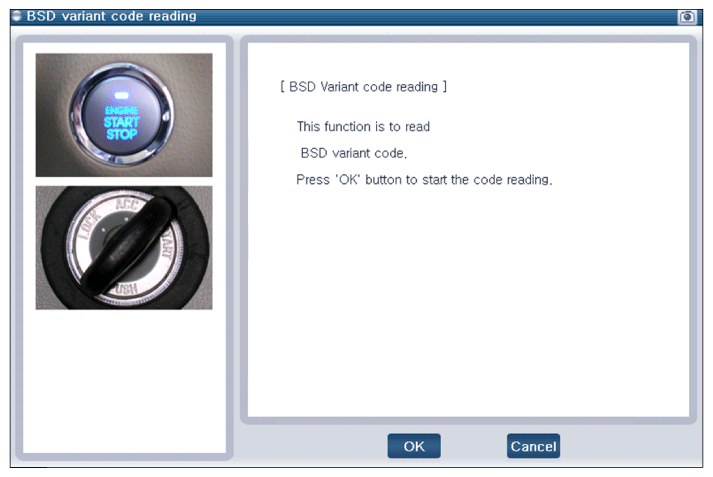

Fig 2: Scantool Display - BSD Variant Code Reading 2
G11787331Courtesy of KIA MOTORS AMERICA, INC.

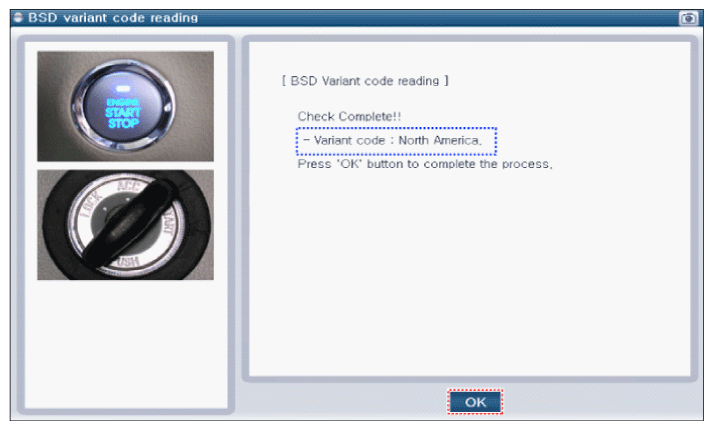

Fig 3: Scantool Display - BSD Variant Code Reading 3
G11787332Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Scantool Display - BSD Variant Code Reading 4
G11787333Courtesy of KIA MOTORS AMERICA, INC.
