BSD Variant Coding (Reference. 2)

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Select "Vehicle S/W Management"  with GDS.
  4. Select "BSD Variant Coding" under Vehicle S/W Management.
  5. Refer to following procedure to perform Vehicle S/W Management.

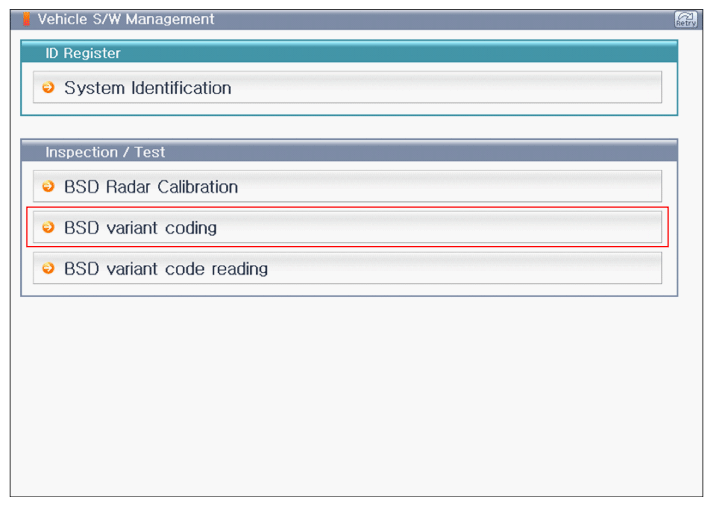

Fig 1: Scantool Display - BSD Variant Coding 1
G11787338Courtesy of KIA MOTORS AMERICA, INC.

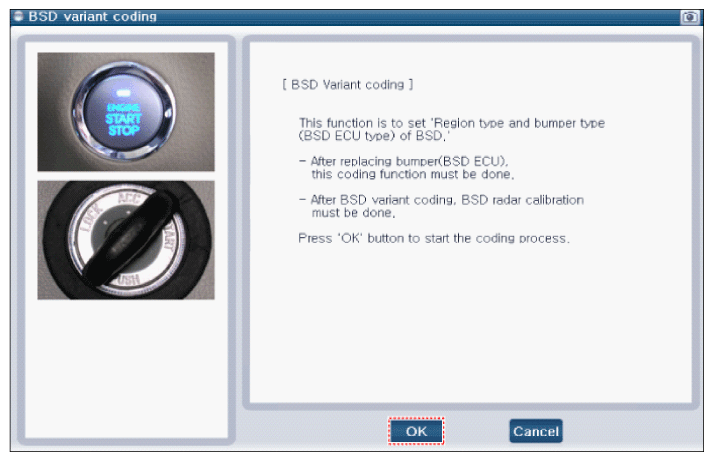

Fig 2: Scantool Display - BSD Variant Coding 2
G11787339Courtesy of KIA MOTORS AMERICA, INC.

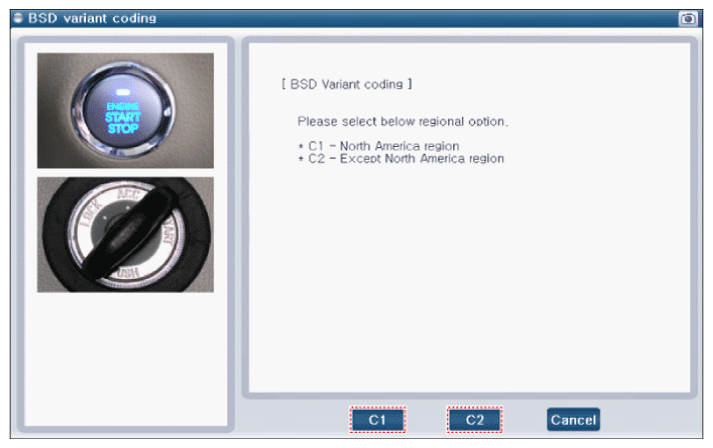

Fig 3: Scantool Display - BSD Variant Coding 3
G11787340Courtesy of KIA MOTORS AMERICA, INC.

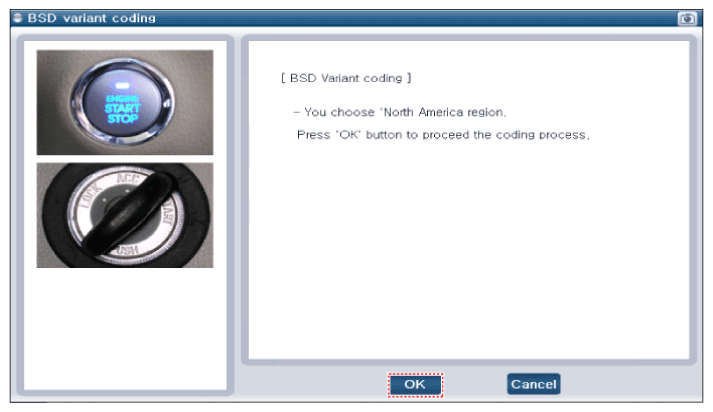

Fig 4: Scantool Display - BSD Variant Coding 4
G11787341Courtesy of KIA MOTORS AMERICA, INC.

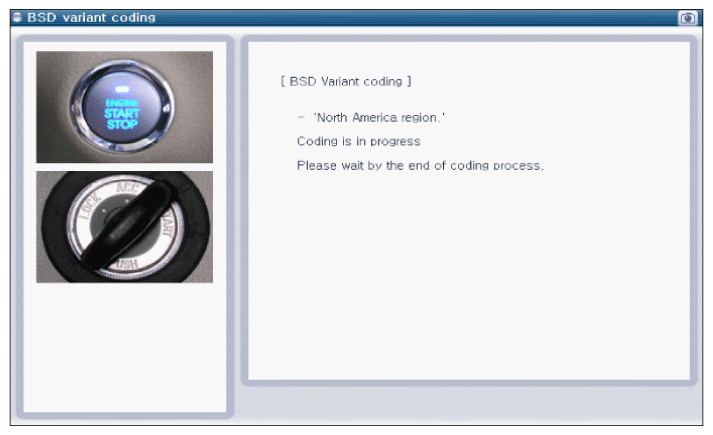

Fig 5: Scantool Display - BSD Variant Coding 5
G11787342Courtesy of KIA MOTORS AMERICA, INC.

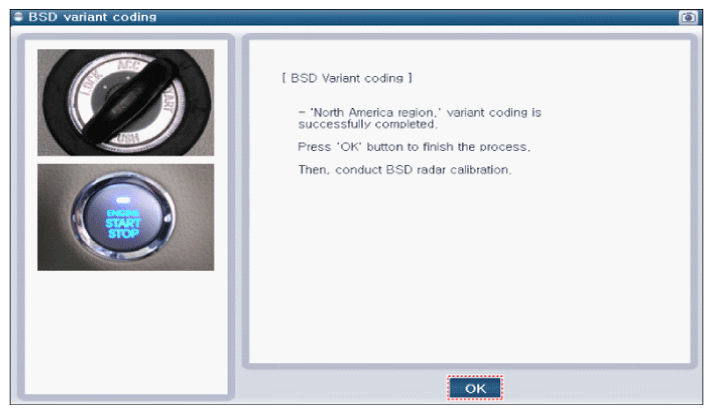

Fig 6: Scantool Display - BSD Variant Coding 6
G11787343Courtesy of KIA MOTORS AMERICA, INC.
