Steering Wheel Remote Control Switch

Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel.
(Refer to Steering System - "STEERING COLUMN & SHAFT ")
Remove the steering wheel cover (A) after loosening the screws.

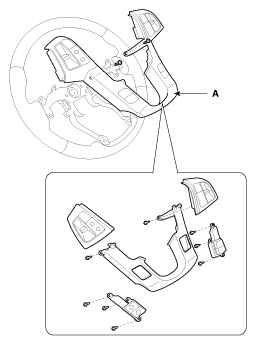

Fig 1: Removing Steering Wheel Cover Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel remote control switch connector (A).
[LH - Audio]

Fig 2: Removing Steering Wheel Remote Control Switch Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH - Bluetooth]

Fig 3: Removing Steering Wheel Remote Control Switch Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel remote control switch (A) after loosening the mounting screws.

Fig 4: Removing Steering Wheel Remote Control Switch Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
