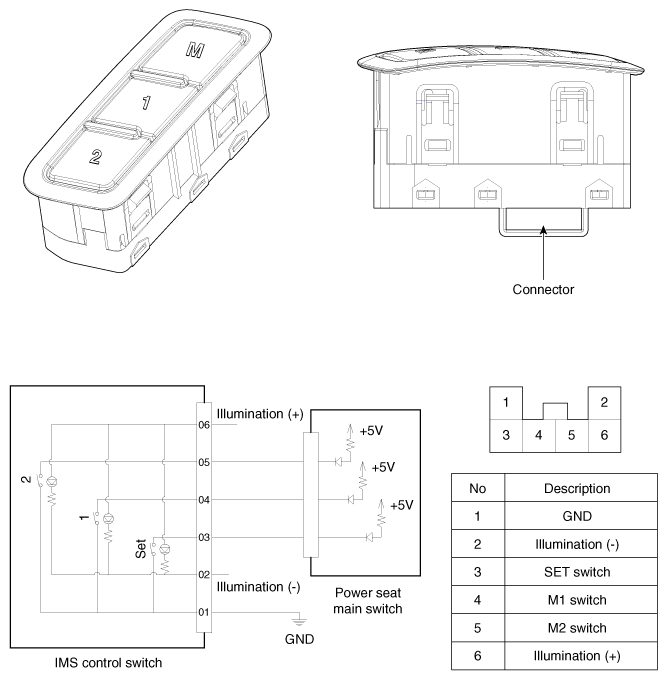

Circuit diagram
Fig 1: Locating IMS Control Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
