Heated Oxygen Sensor (HO2S)
>>
Troubleshooting
>>
Wave Form
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Wave Form

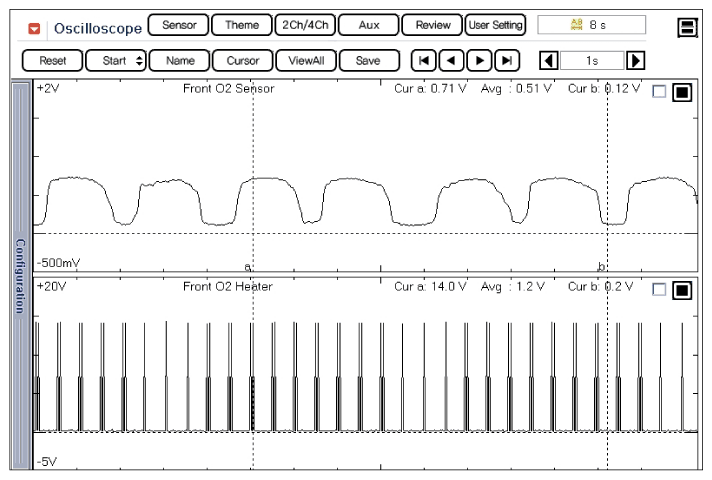

Fig 1: Screen Display - Heated Oxygen Sensor (HO2S) Signal Waveform (Front)
Courtesy of KIA MOTORS AMERICA, INC.

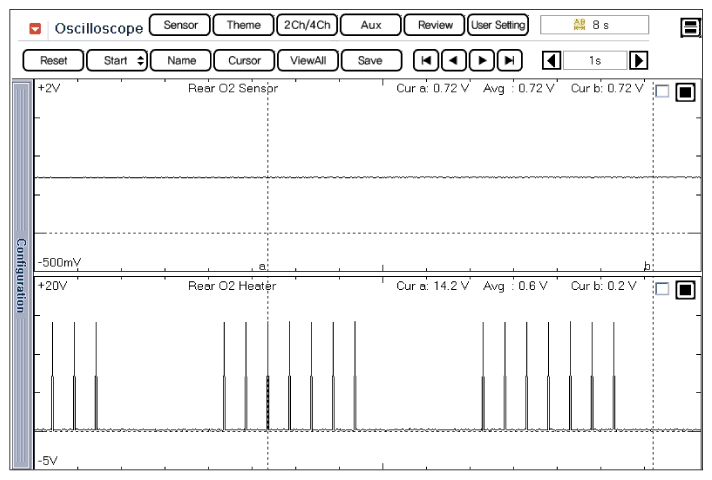

Fig 2: Screen Display - Heated Oxygen Sensor (HO2S) Signal Waveform (Rear)
Courtesy of KIA MOTORS AMERICA, INC.
