Knock Sensor (KS)
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

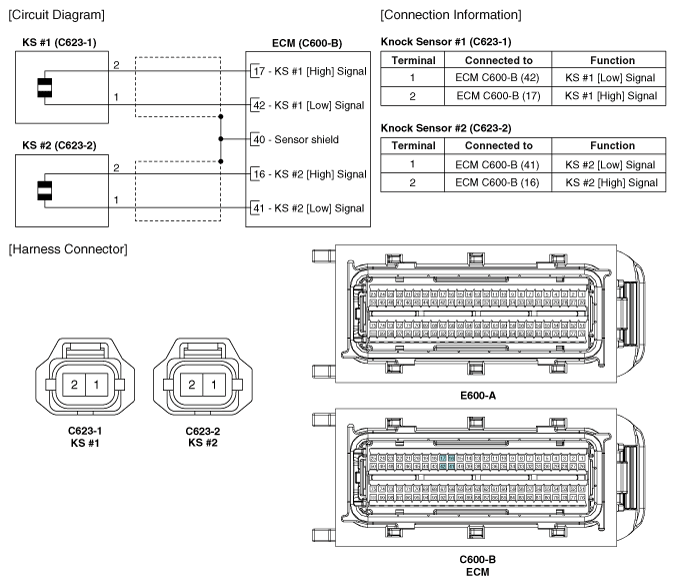

Fig 1: Knock Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
