Signal Waveform & Data

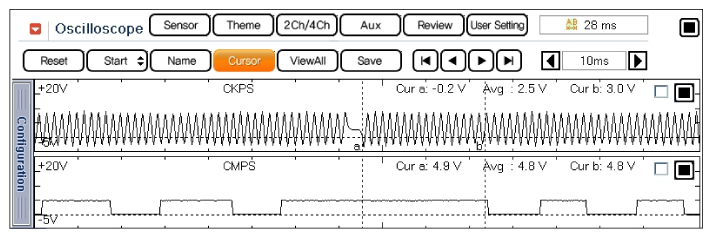

Fig 1: Screen Display - Normal Waveform Of CKPS & IN-CMPS At Idle

Courtesy of KIA MOTORS AMERICA, INC.

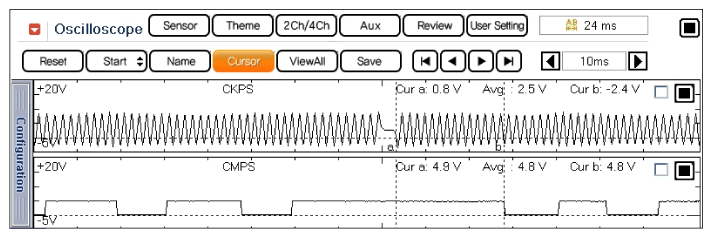

Fig 2: Screen Display - Normal Waveform Of CKPS & IN-CMPS At Acceleration With Load

Courtesy of KIA MOTORS AMERICA, INC.

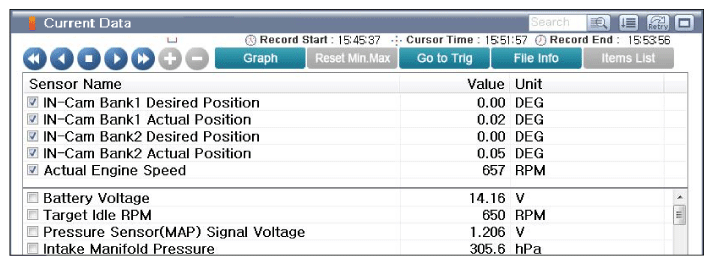

Fig 3: Screen Display - Normal Data Of IN-CVVT At Idle

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - Normal Data Of IN-CVVT At Acceleration With Load

Courtesy of KIA MOTORS AMERICA, INC.

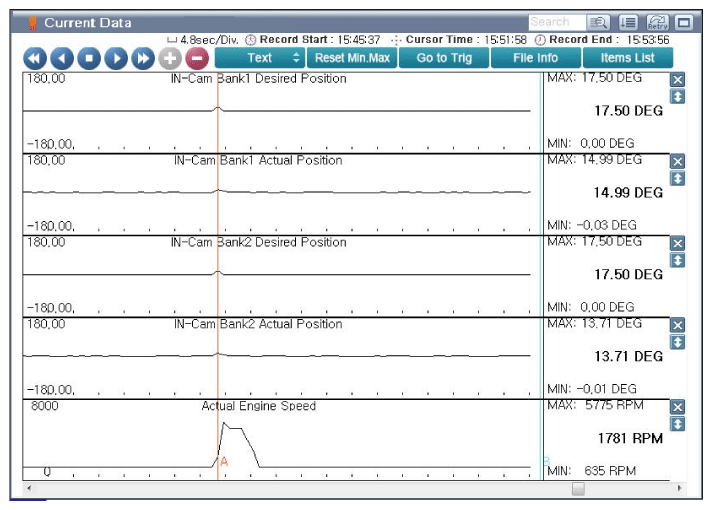

Fig 5: Screen Display - Normal Graph Of IN-CVVT At Acceleration With Load

Courtesy of KIA MOTORS AMERICA, INC.

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle (Fig 1). When the 17th signal of the CKPS after missing tooth of the target wheel is aligned with the high signal of the CMPS at idle, PCM recognizes that synchronization between CKPS and CMPS is completed.
